Product Details:
Payment & Shipping Terms:
|
| Parts Name: | Small Rock Drill Bits | Material: | Carton Steel+Tungsten Carbide |
|---|---|---|---|
| Diameter: | 33-152mm | Other Model: | R22 R25 R32 T45 T51 ST58 ST68ect. |
| Usage: | Or Drifting Tunneling Bench Drilling | Mining Object: | Granite, Marble, Sandstone,limestone |
| Carbide Shape: | Spherical, Ballistic | Application: | Mining, Blasting,road Construction Hole Drilling |
| Processing Type: | Forging | ||
| High Light: | Button Bits Rock Drilling,Tungsten Carbide Drill Bits,Carbide Rock Drill Bits |
||

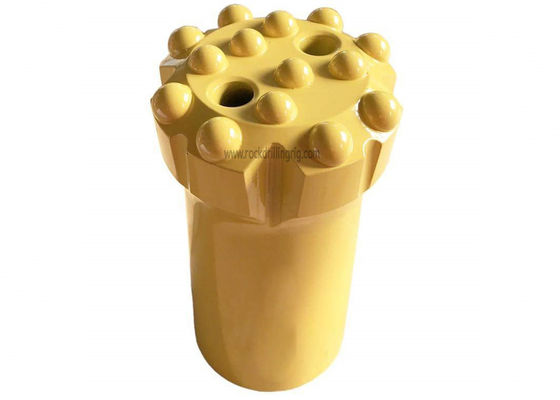

T38 R38 High Grade Tungsten Carbide Thread Button Drill Bit
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
A: Drifting and Tunneling
thread: R25, R28, R32
diameter: 33mm-76mm
B: Bench Drilling
thread: R3212, R32, HL38, T38, T45, T51, T60
diameter: 48mm-152mm
C: Tube Drilling
thread: ST58, ST68
diameter: 89mm-152mm
OEM and ODM--- We can design and manufacture according to customers's samples or drawings of the Bit Dia., No. Of air/water holes, carbide button shape and the face shape.
Super Quality--- Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
Global Reputation--- The drill button bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc. Our clients
Specification
T38 Thread Bit
| Bit Dia | Tip size(mm) | No. of flushing holes | Weight | ||
| mm | (kg) | ||||
| Gauge | Front | Side | Front | ||
| 57 | 5*11 | 3*10 | 1 | 1 | 1.6 |
| 64 | 5*12 | 3*11 | 1 | 1 | 1.6 |
| 76 | 5*14 | 3*12 | 1 | 2 | 2.4 |
| 64 | 8*9 | 4*9 | 2 | 2 | 1.8 |
| 76 | 8*11 | 4*10 | 2 | 2 | 2.6 |
| 89 | 8*12 | 6*11 | 2 | 2 | 3.3 |
| 102 | 8*13 | 6*12 | 2 | 2 | 4.7 |
| 64 | 6*10 | 4*9 | 0 | 3 | 1.7 |
| 70 | 6*11 | 4*10 | 0 | 3 | 2.2 |
| 89 | 6*14 | 4*12 | 0 | 3 | 4.3 |
| 64 | 8*9 | 5*8 | 0 | 4 | 1.7 |
| 70 | 8*10 | 5*9 | 0 | 4 | 2.2 |
| 76 | 8*11 | 5*10 | 0 | 4 | 2.7 |
| 89 | 8*12 | 6*11 | 0 | 4 | 3.3 |
| 102 | 8*13 | 6*12 | 0 | 4 | 4.7 |
| 60 | 8*9 | 3*9 | 2 | 2 | 1.7 |
| 64 | 8*9 | 4*9 | 2 | 2 | 2 |
| 70 | 8*10 | 4*10 | 2 | 2 | 2.4 |
| 76 | 8*11 | 4*10 | 2 | 2 | 3.2 |
| 89 | 8*12 | 5*12 | 2 | 2 | 5.8 |
| 64 | 8*9 | 5*9 | 0 | 4 | 1.9 |
| 70 | 8*10 | 5*10 | 0 | 4 | 2.4 |
| 76 | 8*11 | 5*10 | 0 | 4 | 3.3 |
| 89 | 8*12 | 6*11 | 0 | 4 | 5.3 |
R38 Thread Bit
| Bit Dia | Tip size(mm) | No. of flushing holes | Weight | ||
| mm | (kg) | ||||
| Gauge | Front | Side | Front | ||
| 57 | 5*11 | 3*10 | 1 | 1 | 1.6 |
| 64 | 5*12 | 3*11 | 1 | 1 | 1.6 |
| 76 | 5*14 | 3*12 | 1 | 2 | 2.4 |
| 64 | 8*9 | 4*9 | 2 | 2 | 1.8 |
| 76 | 8*11 | 4*10 | 2 | 2 | 2.6 |
| 89 | 8*12 | 6*11 | 2 | 2 | 3.3 |
| 102 | 8*13 | 6*12 | 2 | 2 | 4.7 |
| 64 | 6*10 | 4*9 | 0 | 3 | 1.7 |
| 70 | 6*11 | 4*10 | 0 | 3 | 2.2 |
| 89 | 6*14 | 4*12 | 0 | 3 | 4.3 |
| 64 | 8*9 | 5*8 | 0 | 4 | 1.7 |
| 70 | 8*10 | 5*9 | 0 | 4 | 2.2 |
| 76 | 8*11 | 5*10 | 0 | 4 | 2.7 |
| 89 | 8*12 | 6*11 | 0 | 4 | 3.3 |
| 102 | 8*13 | 6*12 | 0 | 4 | 4.7 |
| 60 | 8*9 | 3*9 | 2 | 2 | 1.7 |
| 64 | 8*9 | 4*9 | 2 | 2 | 2 |
| 70 | 8*10 | 4*10 | 2 | 2 | 2.4 |
| 76 | 8*11 | 4*10 | 2 | 2 | 3.2 |
| 89 | 8*12 | 5*12 | 2 | 2 | 5.8 |
| 64 | 8*9 | 5*9 | 0 | 4 | 1.9 |
| 70 | 8*10 | 5*10 | 0 | 4 | 2.4 |
| 76 | 8*11 | 5*10 | 0 | 4 | 3.3 |
| 89 | 8*12 | 6*11 | 0 | 4 | 5.3 |
