Product Details:
Payment & Shipping Terms:
|
| Product Name: | T38 64mm Hard Rock Drill Bit | Diameter: | 64mm |
|---|---|---|---|
| Thread: | T38 | Button Size: | 4x10mm,8x10mm |
| Processing Type: | Forging | Usage: | Drifting Tunneling Bench Drilling |
| High Light: | Rock Hammer Drill Bits,Top Hammer Drill Bits,T38 Rock Drilling Tools |
||

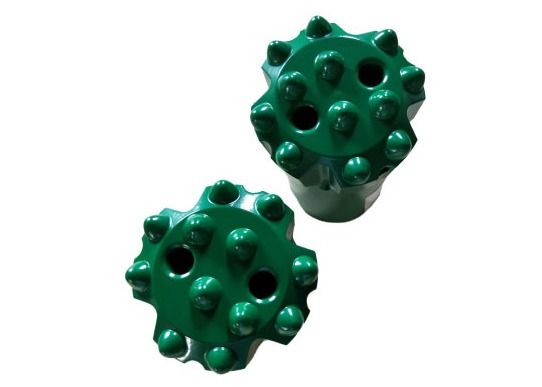

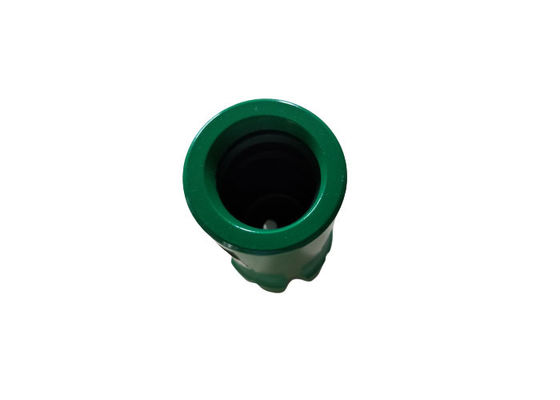

64mm T38 Top Hammer Drilling Thread Hard Rock Drill Bits
Hard Rock Drill bits
The hard rock drill bit is mainly used for blasting hole excavation of open pit rock drilling, underground mining, tunnelling and other infrastructure projects. The connection mode is mainly T-threaded connection and R-threaded connection. The top hammer hydraulic rock drilling rods equipped with drilling rigs and open-air drilling rigs are used to receive the energy transmitted by the rock drill to achieve the effect of breaking the rock.
At present, the most used in engineering is the spherical bit and the ballistic bit. Due to the special working environment of the thread bit, we require that the thread drill bit should have high wear resistance and impact resistance, and have sufficient toughness to cope with the complicated and harsh working environment. Our rock drilling bit is made of high-quality special steel, the alloy head is made of high-strength and toughness wear-resistant alloy, and the whole processing adopts special surface treatment, thus ensuring that our bit is more durable and has higher fatigue resistance.
T38 Thread Hard Rock Drill Bit Specification
| Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | kg | |
| Ballistic | ||||||||
| 64 | 2 1/2 | 3×11 | 6×12 | 35° | 3 | - | 1.8 | 4148300722 |
| 64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | 4148300723 |
| 64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | - | 1.7 | 4148300724 |
| 70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | - | 1.9 | 4148300725 |
| 70 | 2 3/4 | 4×10, 1×10 | 8×11 | 30° | 4 | - | 1.9 | 4148300726 |
| 76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.4 | 4148300727 |
| 76 | 3 | 5×11 | 8×13 | 35° | 2 | 1 | 2.4 | 4148300728 |
| 76 | 3 | 3×11, 1×11 | 6×12 | 35° | 3 | 1 | 2.6 | 4148300729 |
| 76 | 3 | 4×11, 1×11 | 8×12 | 35° | 4 | - | 2.6 | 4148300730 |
| 76 | 3 | 4×11, 1×11 | 8×11 | 40° | 4 | - | 2.6 | 4148300731 |
| 89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | - | 3.3 | 4148300732 |
| 89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | - | 3.3 | 4148300733 |
| 89 | 3 1/2 | 3×11, 2×11 | 6×13 | 35° | 3 | 1 | 3.3 | 4148300734 |
| 89 | 3 1/2 | 4×11, 1×11 | 8×13 | 35° | 4 | - | 3.3 | 4148300735 |
| 89 | 3 1/2 | 4×13, 1×13 | 8×13 | 35° | 4 | - | 3.3 | 4148300736 |
Button carbide shape
| Button shape | Application |
|
Hemispherical Buttons Universal button for all rock formations,best suited to hardest and very abrasive rock formations |
|
Parabolic button Excellent penetration rate,but only suited to medium hard and not so very abrasive rock formations |
|
Conical button
For soft to medium rock hardness,more aggressive with faster penetration rates.
|
|
Ballistic button
Similar to Parabolic buttons,used for soft to medium hard and not so abrasive rock formations,excellent in penetration rate |
