XYL-2B Hydraulic 350m Crawler Type Core Drilling Rig

I'm Online Chat Now

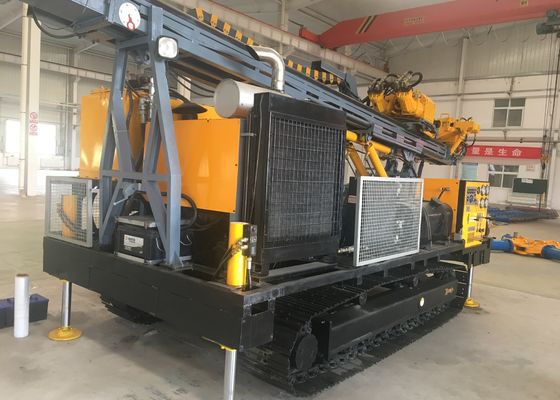

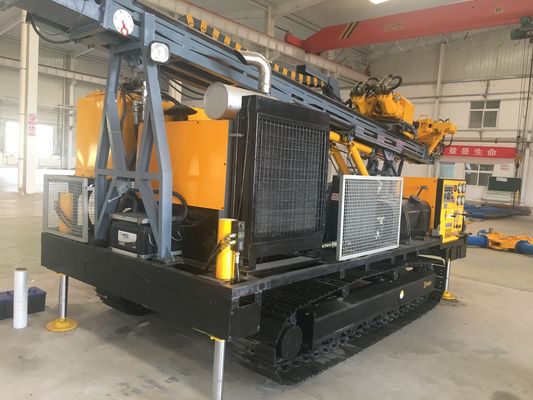

XYL-2B Hydraulic 350m Crawler Type Core Drilling Rig

XYL-2B Hydraulic 350m Crawler Type Core Drilling Rig
XYL-2B Hydraulic 350m Crawler Type Core Drilling Rig XYL-2B Hydraulic 350m Crawler Type Core Drilling Rig XYL-2B Hydraulic 350m Crawler Type Core Drilling Rig XYL-2B Hydraulic 350m Crawler Type Core Drilling Rig

Large Image :  XYL-2B Hydraulic 350m Crawler Type Core Drilling Rig

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Color: Orange Model: XYL-2B
Drilling Depth: 350m Overal Dimension (L*W*H): 3816×2104×8536 Mm
Height Of Mast: 8m Grounding Pressure: 0.06 MPa
High Light:

350m core drilling machine

,

Crawler Type Core Drilling Rig

,

Hydraulic Core Drilling Rig

XYL-2B Hydraulic 350m Crawler Type Core Drilling Rig



XYL-2B crawler type core drilling rig is designed to mount on crawler with four hydraulic jacks, self-erect mast by hydraulic control, and equipped mud pump and operation table are mounted on main machine, which are mainly used for Geological drilling project in the shallow hole, small hole spacing.



MAIN FEATURE:

  1. Integrated crawler- traveling mechanism, mast, mud pump, operation table;
  2. Crawler- traveling mechanism, four jack, lifting and falling of the mast are all controlled by hydraulic system of main machine, which are easy for operation;
  3. This rig realizes the integral moving of drilling equipment, which improves the working efficiency and reduces Workers’s labor intensity;
  4. This rig has the fuction of lifting and falling of mast, which is convenient for traveling and transporation;
  5. This rig has 8 block of rotating speed and Reasonable speed range, with large torque ar slow speed and wide using range;

Technical Specifications for XYL-2B:



Item Specification Unit Data
1 Drilling depth(NQ dia.76mm final hole) m 350
2



Spindle speed

Co-rotation r/min

65;114;180;248;

310;538;849;1172

3 Reverse rotation r/min 51;242
4 Maximum output torque of spindle   2900N·m
5 Maximum pulling force of spindle   60kN
6 Stroke of spindle   600mm
7 Max. pulling force of winch   30kN
8 Spindle inner dia (mm)   76mm
9 Stroke of moving cylinder   304mm
10 Leave the hole distance   140mm
11 Power of engine (optional) kW Electromotor 22 kW;diesel engine 30kW
12 Mud pump (user selected)   BW-200
13 Maximum traction of crawler   20.3kN
14 Maximum traveling speed of crawler   1.2km/h
15 Climbing gradeability of crawler   ≦20°
16 Grounding pressure   0.06 MPa
17 Height of mast   8m
18 Lifting load of hook   29.4 kN
19 Maximum static load of Crown block   58.8 kN
20 Sheave number of crown block   2 PCS
21 Angle of mast   0°~ 90°
22 Overal dimension (L*W*H) Transport condition mm 4320×2104×2995 mm
Working condition 3816×2104×8536 mm
