64mm T38 Rock Drill Bits
| Brand Name: | OEM |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Based on the detailed quotation |
Tungsten carbide Rock Drill Bit
,Hard Rock Drill Bits
,64mm Tungsten Carbide Drill Bits

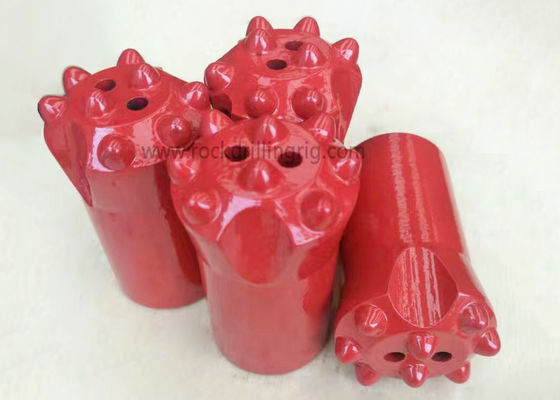

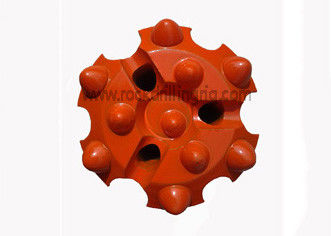

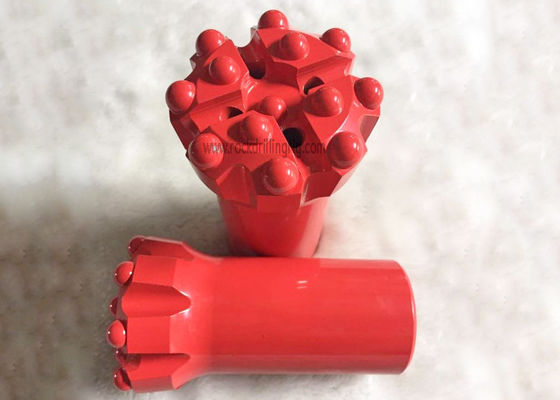

64mm T38 Hard Rock Drill Bits
Hard Rock Drill Bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
A: Drifting and Tunneling
thread: R25, R28, R32
diameter: 33mm-76mm
B: Bench Drilling
thread: R3212, R32, HL38, T38, T45, T51, T60
diameter: 48mm-152mm
C: Tube Drilling
thread: ST58, ST68
diameter: 89mm-152mm
OEM and ODM--- We can design and manufacture according to customers's samples or drawings of the Bit Dia., No. Of air/water holes, carbide button shape and the face shape.
Super Quality--- Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
Global Reputation--- The drill button bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc. Our clients
Specification
T38 Thread Bit
| Bit Dia | Tip size(mm) | No. of flushing holes | Weight | ||
| mm | (kg) | ||||
| Gauge | Front | Side | Front | ||
| 57 | 5*11 | 3*10 | 1 | 1 | 1.6 |
| 64 | 5*12 | 3*11 | 1 | 1 | 1.6 |
| 76 | 5*14 | 3*12 | 1 | 2 | 2.4 |
| 64 | 8*9 | 4*9 | 2 | 2 | 1.8 |
| 76 | 8*11 | 4*10 | 2 | 2 | 2.6 |
| 89 | 8*12 | 6*11 | 2 | 2 | 3.3 |
| 102 | 8*13 | 6*12 | 2 | 2 | 4.7 |
| 64 | 6*10 | 4*9 | 0 | 3 | 1.7 |
| 70 | 6*11 | 4*10 | 0 | 3 | 2.2 |
| 89 | 6*14 | 4*12 | 0 | 3 | 4.3 |
| 64 | 8*9 | 5*8 | 0 | 4 | 1.7 |
| 70 | 8*10 | 5*9 | 0 | 4 | 2.2 |
| 76 | 8*11 | 5*10 | 0 | 4 | 2.7 |
| 89 | 8*12 | 6*11 | 0 | 4 | 3.3 |
| 102 | 8*13 | 6*12 | 0 | 4 | 4.7 |
| 60 | 8*9 | 3*9 | 2 | 2 | 1.7 |
| 64 | 8*9 | 4*9 | 2 | 2 | 2 |
| 70 | 8*10 | 4*10 | 2 | 2 | 2.4 |
| 76 | 8*11 | 4*10 | 2 | 2 | 3.2 |
| 89 | 8*12 | 5*12 | 2 | 2 | 5.8 |
| 64 | 8*9 | 5*9 | 0 | 4 | 1.9 |
| 70 | 8*10 | 5*10 | 0 | 4 | 2.4 |
| 76 | 8*11 | 5*10 | 0 | 4 | 3.3 |
| 89 | 8*12 | 6*11 | 0 | 4 | 5.3 |
