25m DTH Drilling Rig

I'm Online Chat Now

25m DTH Drilling Rig

25m DTH Drilling Rig
25m DTH Drilling Rig 25m DTH Drilling Rig

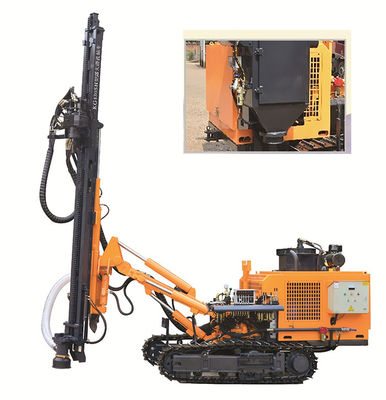

Large Image :  25m DTH Drilling Rig

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Drilling Hardness: F=6-20 Rotary Speed: 0-90rpm
Lifting Force: 40 KN Climing Capacity: ≤30°
Dimension: 6000*2250*2700mm Weight: 6000 Kg
Application: Mining,Quarry,DTH Drilling Drilling Diameter: 90-152mm
Machine Type: Crawler Mounted Drilling Depth: 25m
High Light:

Mining DTH Drilling Machine


25m Drilling Machine Rig


Crawler Mounted DTH Rig Machine

25m DTH Drilling Rig

KG series Blast Hole Drilling Rig for granite are specially designed drill equipment, which can be widely used for surface drilling such as quarry, railway construction, road construction, small to medium mining operation and etc. High performance features higher penetration rate with lower fuel consumption. Compressed air is used to operate crawler drill hammer for blast holes drilling, bench hole drilling, grout hole drilling, anchor hole drilling and etc.


KG430SH drilling rig
Rock rigidityf=6-20
Diameter of holeΦ90-152mm
Depth of economical drilling25m
Rotation speed0-90r/min
Rotation torque4500N·m
Lift power40000N
Feed wayoil cylinder-leaf chain
Feed distance3980mm
Walk speed0-2.5Km/h
Ground clearance515mm
Size of drill machine6000x2250x2700
Sliding carriage pitch angleBlow 135°,up50°, total 185°
Sliding carriage swing angleLeft100°,right45°,total 145°
Sliding carriage suppling length900mm
Drill pipeΦ76x3000mm
Air consumption13-20m³/min
Max height of horizontal hole2900mm
Min height of horizontal hole750mm

The KG430S/KG430SH down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions.The drill rig is equipped with the two independent systems,namely diesel engine and motoe,capable of separate operations pressure and climbing capacity.
The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position. The double rotation motor increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
The KG430SH down the hole drill rig for open use is equipped with a dust collector,thus making operation more environment-friendly and reliable
25m DTH Drilling Rig 0
25m DTH Drilling Rig 1
25m DTH Drilling Rig 2
25m DTH Drilling Rig 3
Packing& Delivery
 25m DTH Drilling Rig 4

25m DTH Drilling Rig 5
