| Lifting Force: | 25 KN | Weight: | 7100 Kg |
|---|---|---|---|
| Drilling Depth: | 40m | Rotary Speed: | 0-110rpm |
| Climing Capacity: | ≤30° | Dimension: | 6700*2250*2850mm |
| Drilling Hardness: | F=6-20 | Diesel Engine: | 92 KW |
| Drilling Diameter: | 105-202mm | Machine Type: | Crawler Mounted |
| Method Of Feed: | Motor-Roller Chain | Application: | Mining,Quarry,DTH Drilling |
| High Light: | Down The Hole Drilling Machine,Down The Hole Drilling Equipment,Crawler Mounted DTH Drilling Equipment |
||

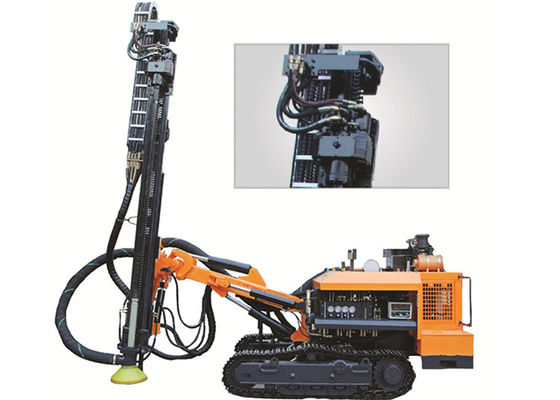

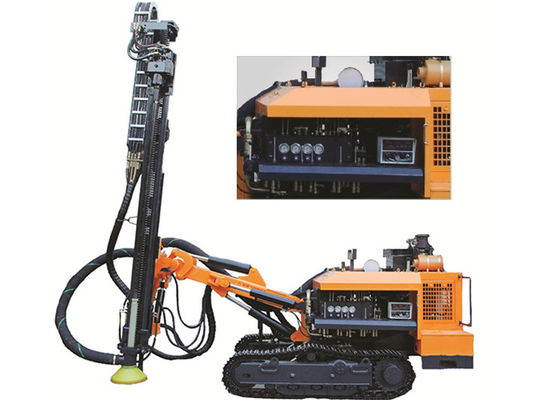

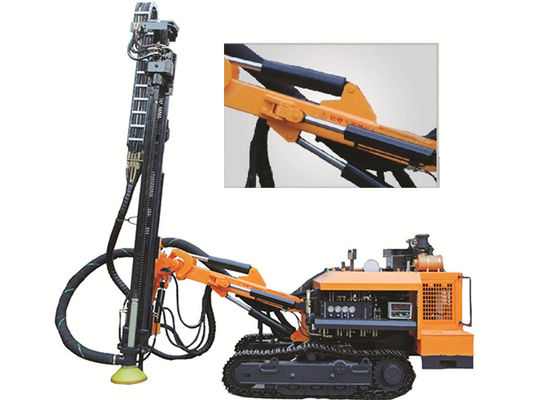

KG610 Crawler Mounted Rock Blast Hole Drilling Rig Machine
Characteristics
KG series Blast Hole Drilling Rig for granite are specially designed drill equipment, which can be widely used for surface drilling such as quarry, railway construction, road construction, small to medium mining operation and etc. High performance features higher penetration rate with lower fuel consumption. Compressed air is used to operate crawler drill hammer for blast holes drilling, bench hole drilling, grout hole drilling, anchor hole drilling and etc.
Specifiction
| KG610 drilling rig | |
| Model | KG610/KG610H |
| Rock rigidity | f=6-20 |
| Diameter of hole | Φ105-202mm |
| Depth of economical drilling | 40m |
| Rotation speed | 0-110r/min |
| Rotation torque | 4500N·m |
| Lift power | 25000N |
| Feed way | Motor-roller chain |
| Feed distance | 4010mm |
| Walk speed | 0-2.5Km/h |
| Gradeability | ≤30° |
| Ground clearance | 440mm |
| Weight | 7100kg |
| Size of drill machine | 6700x2250x2850 |
| Sliding carriage pitch angle | Blow 135°,up50°, total 185° |
| Sliding carriage swing angle | Left100°,right45°,total 145° |
| Sliding carriage suppling length | 900mm |
| Power | CUMMINS QSB3.9-C125(92KW/2200r/min) |
| Drill pipe | Φ76x3000mm/φ89X3000mm |
| Air consumption | 15-26m³/min |
| Max height of horizontal hole | 2850mm |
| Min height of horizontal hole | 900mm |
Application
The KG610/KG610H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Cummins four-cylinder engine (China III), the drill rig meets the national standards for emissions and environment. The folding frame track,four-wheel drive are adopted and track leveling and the imported walking motor of plunger piston improve the working pressure and climbing capacity.The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position.The double motor is installed to raise the rotary torque and revolving speed;and the lifting hydraulic cylinder and chain are expanded to raise the lifting force and reliability.The dust collector is enlarged to produce a better effect on dust collection.The thickened profile folder is used for the housing,thus improving its level of intensity and rigidity;and the additional ring makes handing and lifting convenient
The KG610H down the hole drill rig for open use is equipped with a dust collector as optional parts,thus making operation more environment-friendly and reliable.
