Diesel Engine KG430 Down The Hole Drilling Equipment

I'm Online Chat Now

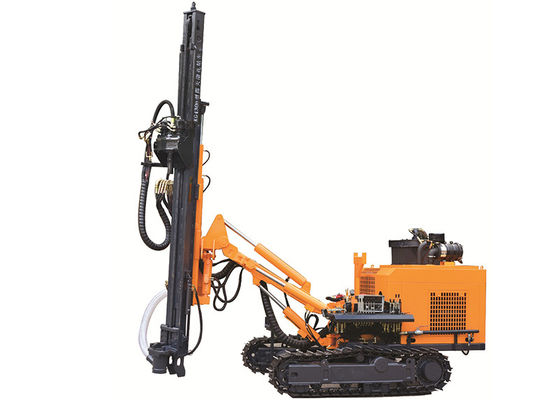

Diesel Engine KG430 Down The Hole Drilling Equipment

Diesel Engine KG430 Down The Hole Drilling Equipment
Diesel Engine KG430 Down The Hole Drilling Equipment Diesel Engine KG430 Down The Hole Drilling Equipment

Large Image :  Diesel Engine KG430 Down The Hole Drilling Equipment

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Drilling Depth: 25m Drilling Diameter: 90-127mm
Drilling Hardness: F=6-20 Rotary Speed: 0-90 Rpm
Lifting Force: 40 KN Climing Capacity: ≤30°
Dimension: 5700*2150*2700mm Machine Type: Crawler Mounted
Application: Mining,Quarry,Rock Blasting Weight: 5500 Kg
High Light:

DTH Crawler Drilling Rig

,

Hydraulic Crawler Drilling Rig

,

Hydraulic Crawler Drilling Machine

Diesel Engine KG430 Down The Hole Drilling Equipment




Specifiction



Model KG430 KG430H
Weight 5500kg 5700kg
Size of drill machine 5700X2150X2700mm 5700X2150X2700mm
Rock rigidity f=6-20
Diameter of hole Φ90-127mm
Depth of economical drilling 25m
Rotation speed 0-90r/min
Rotation torque 3000N·m
Lift power 40000N
Feed way oil cylinder-chain
Feed distance 3175mm
Walk speed 0-2.5Km/h
Grade ability 30°
Ground clearance 500mm
Pitch angle of beam Blow 135°,up50°, total 185°
Swing angle of beam Left91°,right5°,total 96°
Pitch angle of drill arm Blow 55°,up15°, total 70°
Swing angle of drill arm Left45°,right45°,total 90°
Leveling angle of track ±10°
Compensation length of beam 900mm
Power YC4DKC4G2-80 (58KW/2200r/min)
Drill pipe 76X3000mm
Air consumption 18-21m³/min
Max height of horizontal hole 2900mm
Min height of horizontal hole 750mm




Characteristics



KG series Blast Hole Drilling Rig for granite are specially designed drill equipment, which can be widely used for surface drilling such as quarry, railway construction, road construction, small to medium mining operation and etc. High performance features higher penetration rate with lower fuel consumption. Compressed air is used to operate crawler drill hammer for blast holes drilling, bench hole drilling, grout hole drilling, anchor hole drilling and etc.



Application


The KG430 down the hole drill rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and the tramming motor of plunger piston improve the working pressure and climbing capacity.

The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements on limiting position. The double rotation motor increases the rotary toque and revolving speed, and the lifting oil cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.
Comment:The KG430H down the hole drill rig for open use is equipped with a dust collector,thus making operation more environment-friendly and reliable

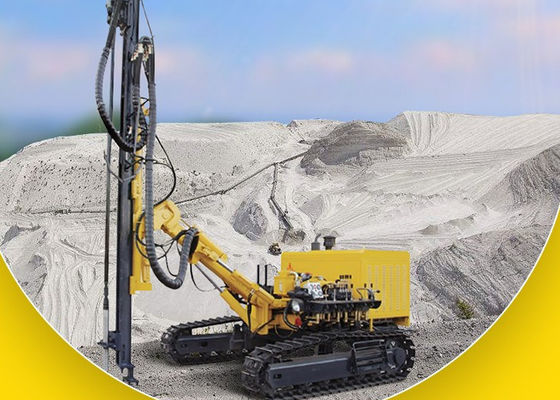

Diesel Engine KG430 Down The Hole Drilling Equipment 0
Diesel Engine KG430 Down The Hole Drilling Equipment 1
Diesel Engine KG430 Down The Hole Drilling Equipment 2

Diesel Engine KG430 Down The Hole Drilling Equipment 3

Packing& Delivery
 Diesel Engine KG430 Down The Hole Drilling Equipment 4
Diesel Engine KG430 Down The Hole Drilling Equipment 5
Our Service

Pre-service:
Professional engineers to provide pre-sales technical advice and guidance supporting the planning, such as unit selection, matching, room design, answer difficult questions encountered by the user during use and provide technical guidance;
The sale:
Our company will sent professional and technical personnel to the installation site for installation and commissioning of the unit after receiving user notification , and do a good job with the user acceptance.
Standard unit responsible for guiding installation, commissioning
After-service:
The warranty period: from the date of acceptance or the date of one year warranty accumulated 1,000 hours (whichever occurs both), as a result of parts factory assembled negligence or improper design and selection of raw materials and other reasons caused the damage or other unit fault, may be responsible for the warranty by the supplier.
