Small Diesel Mining Rock Drilling Rig For Building Foundation
| Brand Name: | OEM |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Based on the detailed quotation |
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Product Name:
Hard Rock Drilling Rig
Tyre Model:
825-16
Key Selling Points:
Easy To Operate
Chassis Length(mm):
4700
Maximum Drilling Depth(M):
10-30(optional)
Drilling Diameter(mm):
500-1400
Dimension(L*W*H):
4700*2200*3000mm
Drilling Depth:
10-30m
Voltage:
380V
Weight:
13-15t
Application:
Building Foundation
Drill Diameter:
500-1400mm
Packaging Details:
Wooden cases standard export package
Supply Ability:
Based on the detailed quotation
Highlight:
30m Mining Drilling Rig
,Diesel Mining Drilling Machine
,Small Mining Drilling Equipment
Product Description

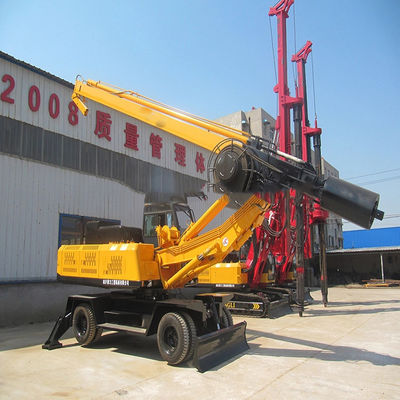

Small Diesel Mining Rock Drilling Rig For Building Foundation
Advantages
The advantages of mining rock drilling rig used in metro engineering are obvious, the applicability is strong, the automation degree is high, the labor intensity is low, the drilling efficiency is high, the quality of pile forming is good, and the environmental pollution is small. It can significantly improve the construction efficiency and quality of the project. In the rational selection of construction methods and construction process, it can maximize the savings of material, financial, human and other resources. It has a win-win significance for enterprise benefit and social security.
| Product Type | mining rock drilling rig of wheel 360 |
| tyre model | 825-16 |
| Chassis length(mm) | 4700 |
| Overall height(M) | 3 |
| Machine weight(t) | 13-15 |
| Maximum drilling depth(M) | 10-30(optional) |
| Drilling diameter(mm) | 500-1400 |
| Engine rated power(KW/rpm) | 85-126KW |
| Power head speed rpm | 10-30(optional) |
| Power head can be customized | YES |
| The maximum speed of the hoist is(m/min) | 50 |
| The maximum lifting power of the auxiliary winch(t) | 1.5 |
| Drill mast | ±5 |
| Pitch angle | 4 |
| Maximum travel speed of chassis(KM/h) | 40 |
| Maximum creep degree of chassis | 30 |
| Working state width(mm) | 2200 |
| Transport status width(mm) | 2200 |
