Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hard Rock Drilling Rig | Tyre Model: | 825-16 |
|---|---|---|---|
| Key Selling Points: | Easy To Operate | Chassis Length(mm): | 4700 |
| Maximum Drilling Depth(M): | 10-30(optional) | Drilling Diameter(mm): | 500-1400 |
| Dimension(L*W*H): | 4700*2200*3000mm | Drilling Depth: | 10-30m |
| Voltage: | 380V | Weight: | 13-15t |
| Application: | Building Foundation | Drill Diameter: | 500-1400mm |
| High Light: | 30m Mining Drilling Rig,Diesel Mining Drilling Machine,Small Mining Drilling Equipment |
||

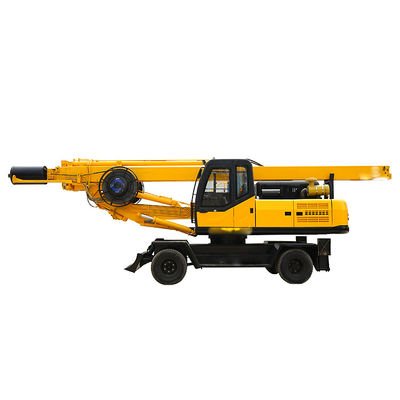

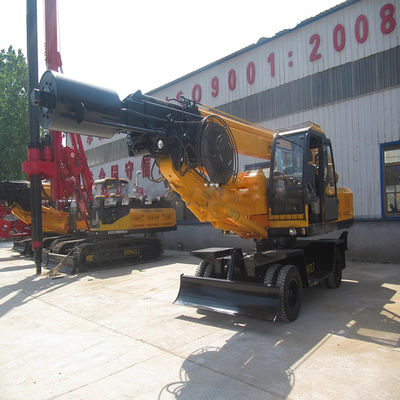

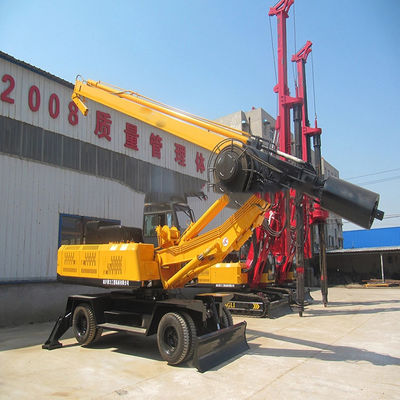

Small Diesel Mining Rock Drilling Rig For Building Foundation
Advantages
The advantages of mining rock drilling rig used in metro engineering are obvious, the applicability is strong, the automation degree is high, the labor intensity is low, the drilling efficiency is high, the quality of pile forming is good, and the environmental pollution is small. It can significantly improve the construction efficiency and quality of the project. In the rational selection of construction methods and construction process, it can maximize the savings of material, financial, human and other resources. It has a win-win significance for enterprise benefit and social security.
| Product Type | mining rock drilling rig of wheel 360 |
| tyre model | 825-16 |
| Chassis length(mm) | 4700 |
| Overall height(M) | 3 |
| Machine weight(t) | 13-15 |
| Maximum drilling depth(M) | 10-30(optional) |
| Drilling diameter(mm) | 500-1400 |
| Engine rated power(KW/rpm) | 85-126KW |
| Power head speed rpm | 10-30(optional) |
| Power head can be customized | YES |
| The maximum speed of the hoist is(m/min) | 50 |
| The maximum lifting power of the auxiliary winch(t) | 1.5 |
| Drill mast | ±5 |
| Pitch angle | 4 |
| Maximum travel speed of chassis(KM/h) | 40 |
| Maximum creep degree of chassis | 30 |
| Working state width(mm) | 2200 |
| Transport status width(mm) | 2200 |
