ZL138E Hydraulic Crawler Small Rock Drilling Equipment

ZL138E Hydraulic Crawler Small Rock Drilling Equipment
ZL138E Hydraulic Crawler Small Rock Drilling Equipment ZL138E Hydraulic Crawler Small Rock Drilling Equipment ZL138E Hydraulic Crawler Small Rock Drilling Equipment

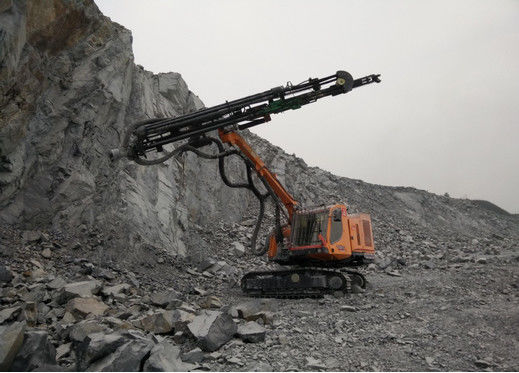

Large Image :  ZL138E Hydraulic Crawler Small Rock Drilling Equipment

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Product Name: Crawler Mounted Drill Rig Rock Hardness: F=4-20
Drilling Diameter(mm): φ64-φ102 Drilling Depth(automatic Drill Rods Connection)(m): 22
Walking Speed (Km/h): 2.O Gradeability: 20°
Power KW: 112 Diesel Engine: CUMMINS 6BTA5.9 112KW
High Light:

Hydraulic Crawler Drilling Machine

,

Hydraulic Drilling Rig Machine

,

Hydraulic Crawler Mounted Drill Rig

ZL138E Hydraulic Crawler Type Small Rock Drilling Equipment



Introduction



ZL138E type hydraulic open-air rig is mainly suitable for open-pit mine production, the construction of hydropower station, take and construction conditions of the excavation, quarry slope treatment etc.



The rig has the following characteristics:



1. The frame can be 360° rotated, greatly improve the working area, don’t need to move frequently,improve the working efficiency.

2. The drill rig is equipped with stable performance DZYG38B full hydraulic rock drill, impact power, high drilling efficiency, low energy consumption.

3. Each main circuit such as shock, rotary drill rig, propulsion, are independent of each other, to ensure the operation of the various functions clear drilling rig.

4. Using the computer data communication, can direct feedback on the display and observes the working state of the drilling rig, hydraulic systems, air compressor system status, etc., through the display can be set and view each work parameters, alarm, parking, failure diagnosis and maintenance of processing is convenient.

5. Low pressure opening function, can guarantee the hole accuracy.

6. Equipped with automatic/manual in brazing equipment, can greatly improve the work efficiency and reduce the labor intensity of operators.

7. The operating system uses the joystick control handle, the operation is simple and convenient.



Specifications:



Rock hardness f=4-20
Drilling diameter(mm) φ64-φ102
Drilling depth(automatic drill rods connection)(m) 22
Walking speed (Km/h) 2.O
Gradeability 20°
Ground clearance(mm) 440
Power kW 112
Diesel engine CUMMINS 6BTA5.9 112KW
Screw compressor displacement(m³/min) 5
Screw compressor discharge pressure (bar) 10
Dimension(L×W×H)mm 6300×2400×3400
Carriage pitch angle +90° -5°
Carriage swing angle Right 35°Left35°
The carriage lateral horizontal swing angle Left90° Right12°
Boom swing angle Right 45° Left10°
Propulsion length each time (mm) 4000
Drill rod φ38×3660,φ45×3660
Dust collecting type Dry type
Rod collecting type Automatic type



DZYG38B hydraulic rock drill specificaitons as follows



Weight(Kg) 150
Surge pressure(MPa) 15-21.5
Rotary pressure(Max)(MPa) 10
Torque(Max)(N·m) 0-750
Impact frequency (Hz) 40-60
Rotating speed(r/min) 0-300
Power(Kw) 45



Details

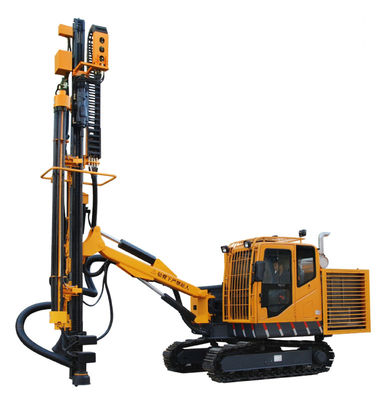

ZL138E Hydraulic Crawler Small Rock Drilling Equipment 0

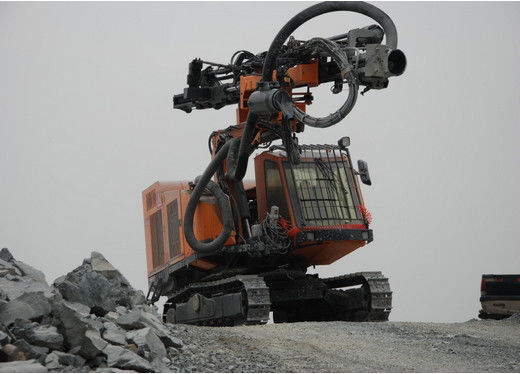

ZL138E Hydraulic Crawler Small Rock Drilling Equipment 1
