Diesel Power 260m Water Well Rock Pneumatic Drilling Rig

I'm Online Chat Now

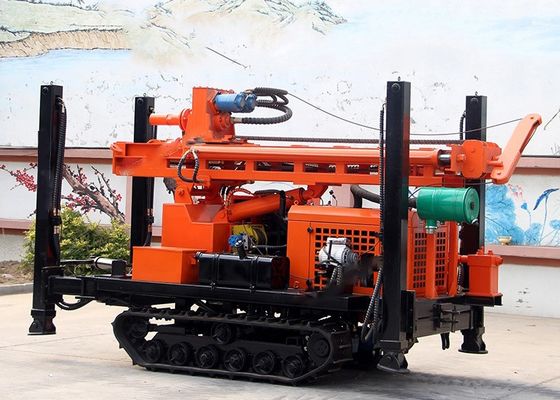

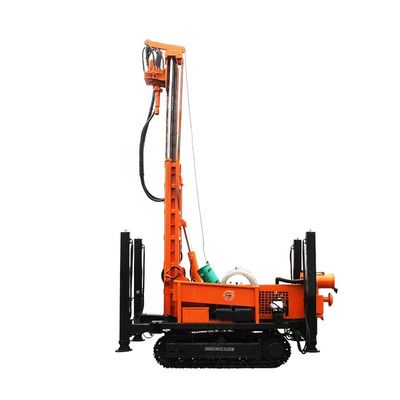

Diesel Power 260m Water Well Rock Pneumatic Drilling Rig

Diesel Power 260m Water Well Rock Pneumatic Drilling Rig
Diesel Power 260m Water Well Rock Pneumatic Drilling Rig Diesel Power 260m Water Well Rock Pneumatic Drilling Rig

Large Image :  Diesel Power 260m Water Well Rock Pneumatic Drilling Rig

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Product Name: Hard Rock Drilling Machine Dimension(L*W*H): 4100*1900*2600 Mm
Key Selling Points: Easy To Operate Drilling Diamete: 140-300 Mm
Climbing Angle: 15° Power Type: Diesel
Weight: 6.4t Drilling Depth: 260m
Drill Inclination: 90° Rotary Output Torque: 7000-9000N.m
Input Power: 48kw Usage: Water Well
Applicable Industries: Construction Works
High Light:

260m Water Well Drilling Rig

,

Hydraulic Drilling Rig Machine

,

Hydraulic Well Drilling Rig

Diesel Power 260m Water Well Rock Pneumatic Drilling Rig



DTH Drilling Rig Machine is a kind of top driven high efficiency and multifunctional hydraulic drilling rig with advanced technology, convenient operation, high working efficiency, reliability and durability. It is widely used in drilling wells, inspection wells, precipitation wells, rescue wells, Ground source air conditioning holes, CBM, natural gas, oil extraction and other projects. this machine can drill holes with air compresse in all formations , the drilling speed is very fast when drill the hard rock, which hardness is f=4-2.

HQZ series rock drilling rig has the compact body. The fuselage width only 1.9 meters, fully suitable for farming courtyard home drilling or other narrow condition drilling. Drilling depth up to 240-300 meters.

Feature


1. Fully hydraulic control is convenient and flexible: can adjust the drilling speed torque, and promote axial pressure, anti-axial pressure, propel and improve the speed to meet the different conditions use of drilling tools and different construction needs.
2. top drive rotary drilling: easy to install and remove the drill rod, shorten the auxillary time, and fasten the drilling of follow-pipe.
3, Multi-function drilling: A variety of drilling processes can be used on this rig, such as: DTH driling, mud drilling, roller cone drilling, drilling with the follow-pipe and the being developed core drilling, etc. This drilling machine can be installed, according to user needs, mud pump, generator, welding machine, cutting machine. Meanwhile, it also comes standard with a variety of winch.
4. High working efficiency: thanks to full hydraulic and top drive rotary drilling, this drilling rig is adapt to a variety of drilling technology and drilling tools, has convenient and flexible control, fast drilling speed, short auxillary time, and thus high operating efficiency.
5. The water well drilling rig adopts double oil pump for oil supply. When drilling, it uses single pump. When lifting the drill, it uses two pumps to merge; the power loss is small and the auxiliary time is short.
6. Low cost: drilling on the rock is dominated by DTH drilling technology, DTH hammer rock drilling operation is high efficiency, drilling cost of per meter is lower.
7, High leg crawler type: high leg is easy for loading and unloading, no need of crane in truck loading. Crawler walking is more adapt to the movement in muddy field.
8. The role of the oil mist: drilling on the rock is dominated by DTH drilling technology, DTH hammer rock drilling operation is high efficiency, lubricated impactor has longer service life, drilling cost of per meter is lower.

9. Drilling rig chassis: It can be crawler chassis, and also be truck-mounted chassis.

Drilling diameter
Ø140- Ø300mm
Drilling depth
260m
Drill rod diameter
Ø76,Ø89
Drill inclination
90°
rotator output torque
7000-9000N.m
Input power(diesel engine)
85kw
Rated speed
40-70r/min
Dimension
4100*1900*2600mm
weight
6400kg
