Crawler Type Rock Drilling Rig

Product Details

Place of Origin: CHINA

Brand Name: OEM

Certification: ISO,CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden cases standard export package

Delivery Time: 10-20 days working days

Payment Terms: T/T, L/C, T/T, Western Union

Supply Ability: Based on the detailed quotation

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    Rotary Table Drilling Rig, Water Drilling Rig Machine, Hydraulic Drilling Rig Machine


Product Name:	Rotary Table Drilling Rig	Usage:	Water Well, Rock
Weight:	8.7T	Rotation(rpm):	45-75
Power Type:	Diesel	Drilling Depth(m):	400m
Rotary Torque(N.m ):	9000-10000	Dimension(LWH):	530020502700
Working Air Pressure(Mpa ):	1.7-3.5	Certification:	CE ,ISO

Product Name:	Rotary Table Drilling Rig
Usage:	Water Well, Rock
Weight:	8.7T
Rotation(rpm):	45-75
Power Type:	Diesel
Drilling Depth(m):	400m
Rotary Torque(N.m ):	9000-10000
Dimension(LWH):	530020502700
Working Air Pressure(Mpa ):	1.7-3.5
Certification:	CE ,ISO

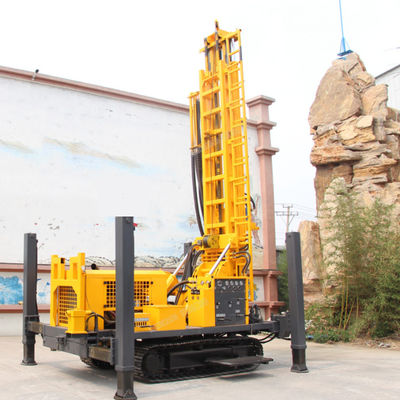

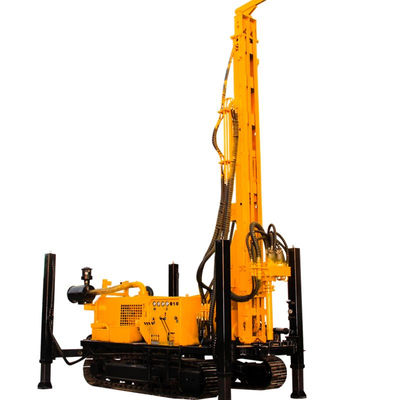

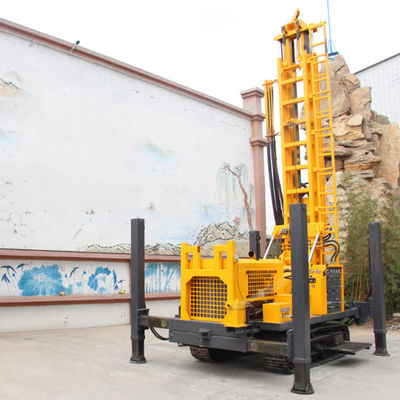

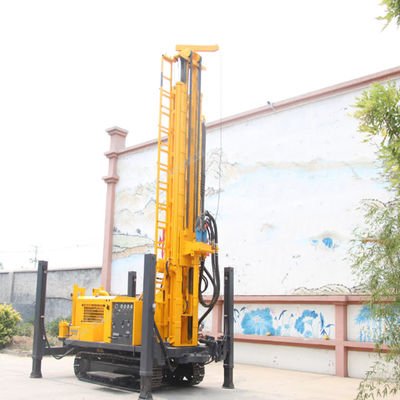

Crawler Type Rock Drilling Rig

Crawler Type Rock Drilling Rig

Rotary table drilling rig is a kind of high efficient and multiple functions drilling equipment, blast hole drill rig is mainly suitable for drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other well holes, It is especially suitable for water intake projects in mountainous and rocky strata. The efficiency is more than ten times higher than that of thetraditional rotary drilling rig, and the economic benefit created for the user is very considerable. water drilling machine for sale.This is one hydraulic hard rock drilling machine

Especially to solve the soil air DTH drilling difficulties, the construction problems of rotary drill hard rock layer, gravel layer, able to work effectively in a variety of geological structure, to achieve the perfect combination of water and pneumatic drill.

Crawler type pneumatic hard rock blast hole drill rig Parameter
Model	HW260L	HW300L	HW400L	HW500L
Total Weight(T )	6.4	8	8.7	9.5
Dimensions(mm )	410019002600	550019502780	530020502700	535021002700
Drilling Diameter(mm)	140-300	140-325	130-400	140-400
Drilling Depth(m)	260	300	400	500
One-time Advance Length of the Drill(mm)	3000	3000/6000	3000/6000	3000/6000
Walking Speed(km/h)	2.5	2.5	6	6
Climbing Ability(max )	30	30	25	25
Min.Ground Clearance(mm )	250	230	300	350
Working Air Pressure(Mpa )	1.7-3.0	1.7-3．3	1.7-3.5	1.7-3.5
Air Consumption(m3 /min )	17-35	23	17-35	17-35
Main Power(kw)	85/Yuchai	92/Yuchai	100/6 cylinder	114/6 cylinder
Rotation(rpm)	40-70	55-115	45-75	45 - 75
Rotary Torque(N.m )	7000-9000	8500-10000	9000-10000	9500-100
