Home / Products / Water Well Drill Bits /

7 1/2 Inches Water Well Drill Bits

7 1/2 Inches Water Well Drill Bits

7 1/2 Inches Water Well Drill Bits

Brand Name: OEM
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Name:
Water Well Drill Bits
Bearing Type:
Sealed
Size:
7 1/2 Inches (190.5mm)
Advantage:
High Cost Performance
Formation:
Medium Hard Formation
Application:
Oil, Gas, Geothermy, Water Well Drilling, Mining
Certificate:
API&ISO
Circulation Type:
Mud Fluid
Packaging Details:
Wooden cases standard export package
Supply Ability:
Based on the detailed quotation
Highlight:

Tungsten Carbide Drill Bits

,

7 1/2 Inches Mining Drill Bits

,

Oil Well Drill Bit

Product Description

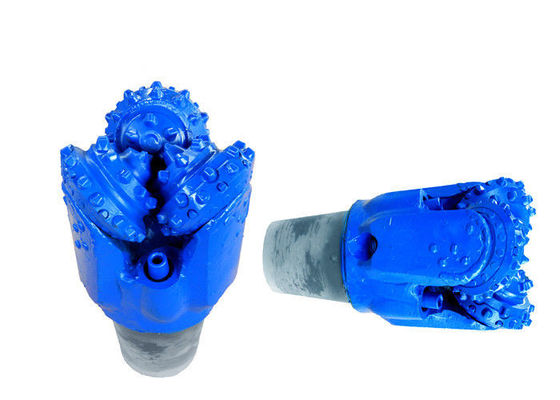

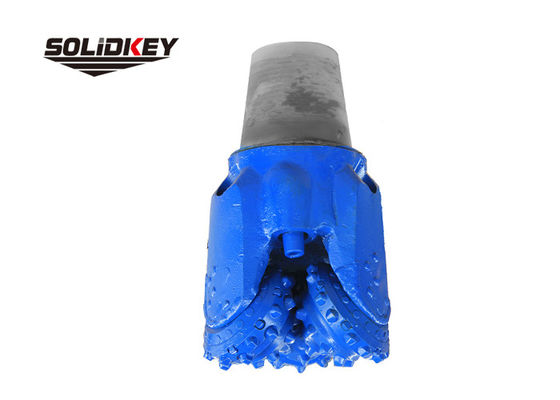

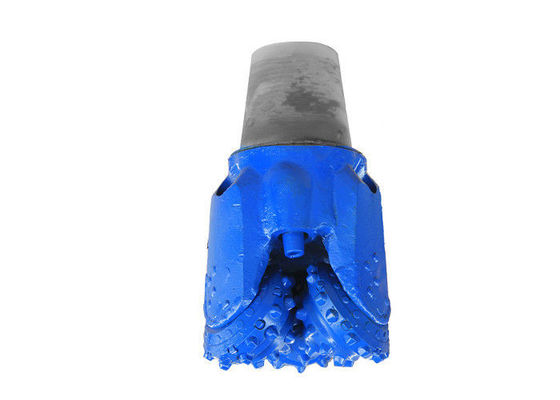

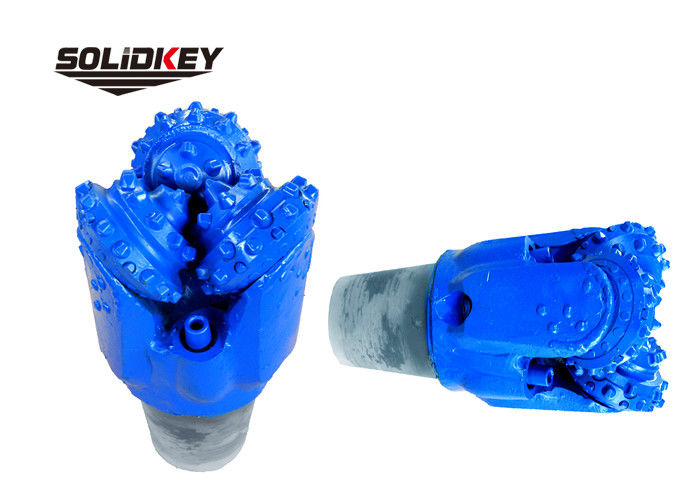

7 1/2 Inches Water Well Drill Bits



Competitive price and perfect performance, the 7 1/2" IADC537G is a traditional and classical model in water well drilling, 4" or 4 1/2" pipes are always installed after 190mm hole drilled.



This tungsten carbide insert water well drill bits has sealed bearing and tungsten carbide gauge protection, it could work with truck mounted drill rig or hydraulic drill rig.



Please contact us to get more details.



Products specfication of water well drill bit



Cone Size 7 1/2"
Bearing Type Elastomer Sealed Bearing
Tooth Type TCI
Circulation Type Mud Fluid
Thread Connection 4 1/2 Reg Pin
Gauge Protection  Available
shirttail Protection Available



Operating Parameters



RPM(r/min) 120~50
WOB(KN) 85~190
Application

Medium formation,such as medium shale, limestone, medium sandstone, medium formation with harder and abrasive interbeds,etc.



7 1/2 Inches Water Well Drill Bits 0
