Tungsten Carbide Low Pressure Water Well Drill Bits

Product Details

Place of Origin: CHINA

Brand Name: OEM

Certification: ISO,CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden cases standard export package

Delivery Time: 10-20 days working days

Payment Terms: T/T, L/C, T/T, Western Union

Supply Ability: Based on the detailed quotation

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    Low Pressure Water Well Drilling Bits, DTH hammer bits, Water Well DTH Drill Bits


Name:	Tricone Drill Bit	Machine Type:	Drilling Tool
Material:	Carbide, Tungsten Carbide	Advantage:	High Cost Performance
Use:	Ore Mining, Well Drilling And Blasting	Application:	Construction Works , Energy & Mining
Type:	Drill Bit, Down The Hole Drill Bit	Processing Type:	Forging

Name:	Tricone Drill Bit
Machine Type:	Drilling Tool
Material:	Carbide, Tungsten Carbide
Advantage:	High Cost Performance
Use:	Ore Mining, Well Drilling And Blasting
Application:	Construction Works , Energy & Mining
Type:	Drill Bit, Down The Hole Drill Bit
Processing Type:	Forging

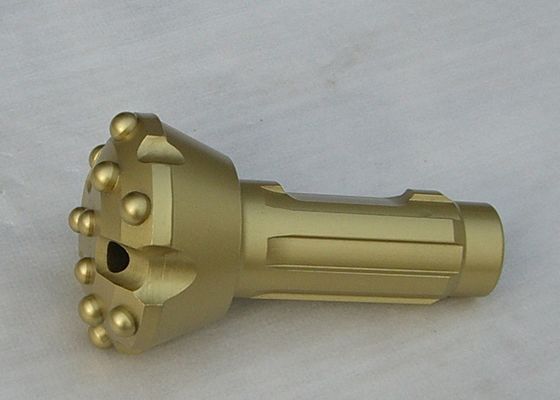

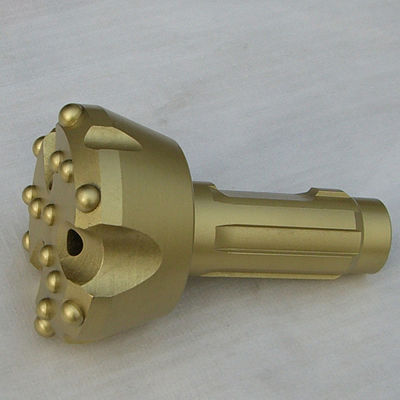

Tungsten Carbide Low Pressure Water Well Drill Bits

Tungsten Carbide Low Pressure Water Well Drilling Bits

DTH Bit for Low Pressure DTH Hammers

1. Size range of low pressure DTH rock bit: 68mm-253mm
2. DTH rock bit face shapes: Flat, Concave, Convex
3. DTH bit button shapes: Spherical, Ballistic, Parabolic
4. Application of DTH rock bit: They are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.
5. Bit size and buttons can be customized.

Type	Number of Air hole	DIa.(mm)	Weight(kg)	Gauge Button	Front Button	Matching DTH Hammer
GL65PQ	1	68-72	1.5	4*12	3*12	GL65
GL75PQ	3	75-77	2.4	5*12	3*12	GL70
GL76PQ	2	76-78	2.5	5*12	3*12	GL76
GL76-78	2	78-82	2.6	5*12	3*12	GL76
GL80PQ	3	82-84	3.0	5*12	6*12	GL80 /80X
GL90A	3	90-95	3.6	6*14	4*12	GL80 /80X
GL80XD-90	3	90-95	3.4	6*12	4*12	GL80XD
GL80-II-80	3	80-82	3.0	5*12	4*12	GL80-II
GL90B	3	90-95	3.8	6*14	4*12	GL90/90-I
GL90T1	2	90-95	3.6	6*14	112 312
GL90T2	2	90-95	3.8	6*14	4*12
GL90T3J	3	90-95	3.6	6*14	4*12
GL90T5	2	90-95	3.6	5*14	4*12
GL90-100	3	100-105	4	6*14	5*12
GL90-105	3	105-110	4.2	6*14	5*12
GL90-110	3	110-115	4.5	8*14	3*12
GL90-120	3	120-125	5	8*14	3*12
GL90-130	3	130-135	6.8	9*14	4*12
GL110-110	3	110-115	6.1	6*14	5*12	GL110
GL110-115	3	110-115	6.3	6*14	5*12
GL110-120	3	120-125	7	6*14	6*12
GL110-125	3	125-130	7.1	6*14	7*12
GL110-130	3	130-135	7.3	6*14	7*12
GL110-135	3	135-140	8	6*14	7*12
GL110-140	3	140-145	8.2	6*14	8*12
GL110-150	3	150-155	9	6*14	8*12
GL150-155	3	155-160	16.3	15*16	4*14	GL150
GL150-165	3	160-165	17.3	15*16	5*14
GL150-185	3	180-185	19.6	15*16	6*14
GL150-200	3	200-205	23	9*16	12*14
GL170-175	3	175-180	22.8	15*16	8*14	GL170
GL170-185	3	185-190	23.24	15*16	8*14
GL170-195	3	195-198	24	15*16	10*14
GL170-200	3	200-203	25.8	15*16	9*14
GL170-210	3	210-213	26.5	12*16	614 616
GL170-220	3	220-223	28.5	15*16	11*14
GL170-230	3	230-233	32	15*16	12*14
GL170-240	3	240-243	36	21*16	6*14
GL170-250	3	250-253	45	15*16	4*14
