444.5mm 17 1/2 Inches Water Well Tricone Drill Bit

444.5mm 17 1/2 Inches Water Well Tricone Drill Bit

444.5mm 17 1/2 Inches Water Well Tricone Drill Bit

Brand Name: OEM
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Bearing Type:
Elastomer
Size:
17 1/2 Inches
Advantage:
High Cost Performance
Formation:
Medium Formation
Market:
Global
Application:
Water Well Drilling
Certificated:
API&ISO
Packaging Details:
Wooden cases standard export package
Supply Ability:
Based on the detailed quotation
Highlight:

Tricone Bit Drilling

,

Tricone Rock Bit

,

Water Well Tricone Drill Bit

Product Description

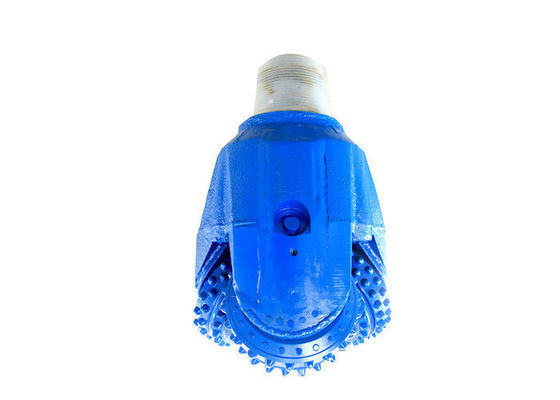

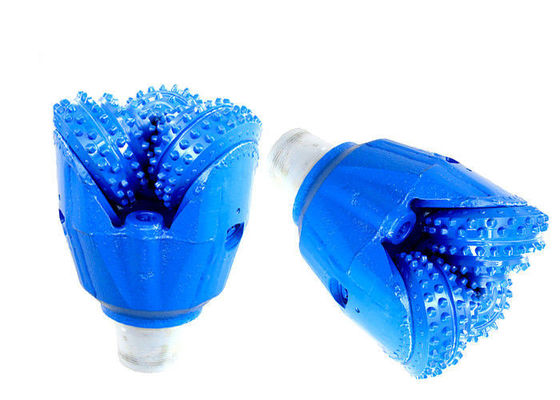

17 1/2 Inches 444.5mm Water Well Tricone Drill Bit



In rock section of water well drilling application, TCI - Tungsten carbide insert tricone bits is required in drilling hard rocks. The diameter 17 1/2" is almost the biggest in water well drilling, usually small capacity drill rig can only drive 17 1/2" tricone drill bits to 100-150 meters depth with stabilizers for keeping well straight.



Solidkey provides tricone drill bits for water well drilling contractors in more than 35 countries in past 10 years. Contact us immediately.



Product Specification



Cone Size 17 1/2"
Bearing Type Elastomer Sealed Bearing
Tooth Type TCI
Circulation Type Mud Fluid
Thread Connection 7 5/8 Reg Pin
Gauge Protection Available
Shirttail Protection Available



Operating Parameters



RPM(r/min) 120~50
WOB(KN) 200~444
Application Medium formations,such as medium shale,limestone,medium sandstone,medium formation with harder and abrasive interbeds,etc.



444.5mm 17 1/2 Inches Water Well Tricone Drill Bit 0
