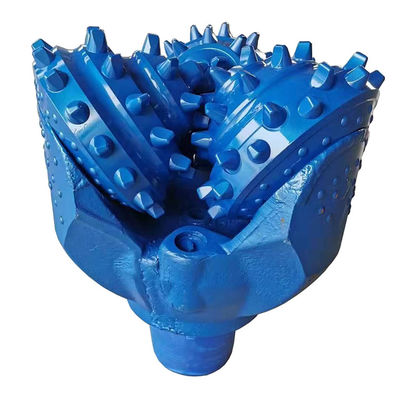

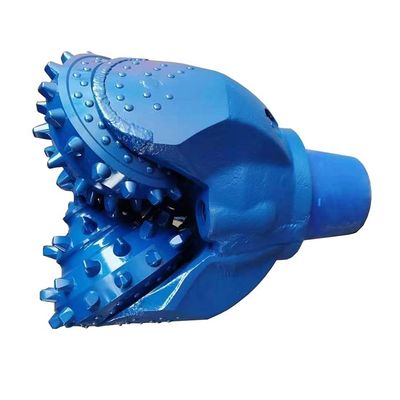

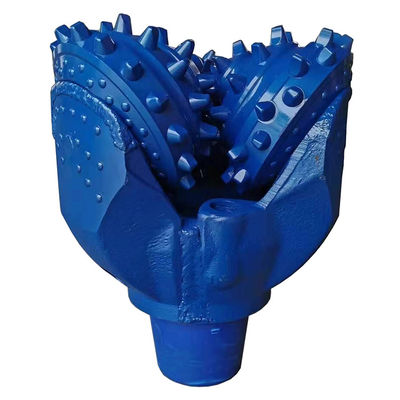

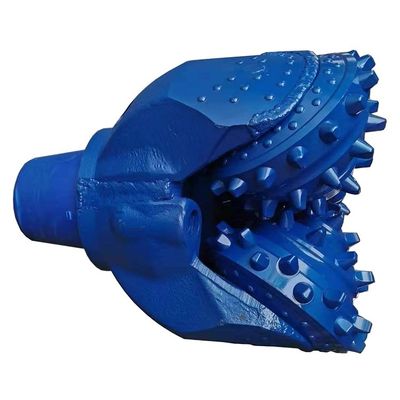

Tricone Roller Cone Drill Bit

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Applicable Industries:

Construction Works , Energy & Mining, Oil

Machine Type:

Drilling Equipment

Material:

High Manganese Steel, Carbide

Use:

Well Drilling

Color:

Blue

Model Number:

IADC 637G

Teeth:

Insert Cone Drill Bit

Type:

Drill Bit, Metal Sealed Bearing

Processing Type:

Forging

Weight:

258kg

Size:

17 1/2

Bearing Type:

Metal Sealed

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Insert Cone Drill Bit

Tricone Roller Cone Bit

Well Drilling Tricone Roller Bit

Product Description

Tricone Roller Cone Drill Bit

Regular Size	API REG PIN
3 7/8(98mm)	2 3/8	4 5/8(118mm)	2 7/8
5 5/8(142.8mm)	3 1/2	5 7/8(149.2mm)	3 1/2
6(152.4mm)	3 1/2	6 1/2(165)	3 1/2
7 1/2(190mm)	4 1/2	7 5/8(193mm)	4 1/2
8 1/2(215.9)	4 1/2	9 1/2(241.3mm)	6 5/8
10 5/8(269.8mm)	6 5/8	11 5/8(295.3mm)	6 5/8
12 1/4(311.15mm)	6 5/8	13 5/8(346mm)	6 5/8
15 1/2(393mm)	7 5/8	16(406.0mm)	7 5/8
17 1/2(445mm)	7 5/8	26(660mm)	7 5/8

PRODUCT PARAMETERS
Size of Rock Bit	17 1/2 Inches
Size of Rock Bit	444.5 mm
IADC	637
RPM(r/min)	80-40
Thread Connection	7 5/8 API reg
Factory Series	HQ Series Elastomer sealed bearing
WOB	223~533KN/ 49998~119994lbs
Weight	258kg
Formation	Medium hard formation with high compressive strength ,such as hard shale,limestone,sandtone,etc.

Notes for the use of roller cone bits:

1 Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.

2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.

3. Run in hole needs to be stable, avoid stress and prevent drilling.

4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.

5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, small drilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.

6. Determine the weight on bit and speed in combination with the actual conditions of the formation.

7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.

8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
