200m Depth Underground Exploration Drilling Rig Equipment

I'm Online Chat Now

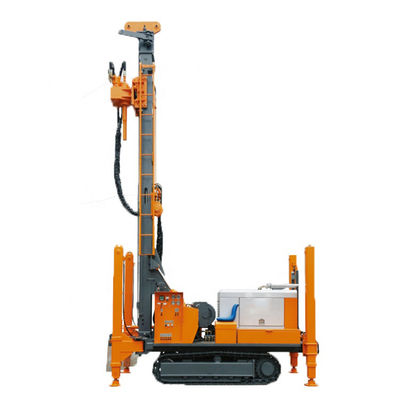

200m Depth Underground Exploration Drilling Rig Equipment

200m Depth Underground Exploration Drilling Rig Equipment
200m Depth Underground Exploration Drilling Rig Equipment 200m Depth Underground Exploration Drilling Rig Equipment 200m Depth Underground Exploration Drilling Rig Equipment

Large Image :  200m Depth Underground Exploration Drilling Rig Equipment

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Keyword: Engineering Drilling Rig Power Type: Diesel
Dimension(L*W*H): 650*200*290cm Voltage: 220V
Weight: 8500kg Feature: High Drilling Efficiency
Drilling Depth: 200m Usage: Water Well
Motor Power: 92KW Color: Yellow
Applicable Industry: Retail, Construction Works , Energy & Mining
High Light:

Underground Mining Drilling Equipment

,

200m Exploration Drilling Rig

,

Water Well Drilling Rig Machine



Engineering Machinery 200m Underground Exploration Drill Rig



Product Features
◆ High premium configuration widely used in various well drilling applications. Combined with best features from domestic and international products and key hydraulic components, all global famous brands to ensure reliability, and the leading top classwater well drill rig in China.

◆ Hoist and which capable to lift drill tools and accessories up to 1500kg, reducing workload of operators.

◆ Tramming motor with larger torque for free and fast moving between different work condition sites.

◆ Feeding and lifting with fast and low speed for higher drilling efficiency, high torque rotation unit with two speed adjustable
for different hole ranges and rock conditions.



Technical Specification



Main Specifications
Engine
YC4DK-125 92kW
Drill Pipe Diameter
φ89x3,000mm
Hole Sizes
φ138-219mm
Rotation Torque
7,500 N.m
Rotation Speed
0-70rpm
Feed Type
Oil Cylinder+Chain
Feed Force
50kN
Pull Up Force
130kN
The Pull Up Force of Winch
1,500kg
Travel Distance of Support Jack Oil Cylinder
1,600mm
Tramming Speed
2.5km/h
Gradient
25º
Ground Clearance
300mm
Total Weight
8,500kg
(LxWxH)Transportation Dimensions
6,500 x 2,000 x 2,900mm

















200m Depth Underground Exploration Drilling Rig Equipment 0200m Depth Underground Exploration Drilling Rig Equipment 1
