200m Depth Underground Exploration Drilling Rig Equipment

Product Details

Place of Origin: CHINA

Brand Name: OEM

Certification: ISO,CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden cases standard export package

Delivery Time: 10-20 days working days

Payment Terms: T/T, L/C, T/T, Western Union

Supply Ability: Based on the detailed quotation

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                            Underground Mining Drilling Equipment, 200m Exploration Drilling Rig, Water Well Drilling Rig Machine


Keyword:	Engineering Drilling Rig	Power Type:	Diesel
Dimension(LWH):	650200290cm	Voltage:	220V
Weight:	8500kg	Feature:	High Drilling Efficiency
Drilling Depth:	200m	Usage:	Water Well
Motor Power:	92KW	Color:	Yellow
Applicable Industry:	Retail, Construction Works , Energy & Mining

Keyword:	Engineering Drilling Rig
Power Type:	Diesel
Dimension(LWH):	650200290cm
Voltage:	220V
Weight:	8500kg
Feature:	High Drilling Efficiency
Drilling Depth:	200m
Usage:	Water Well
Motor Power:	92KW
Color:	Yellow
Applicable Industry:	Retail, Construction Works , Energy & Mining

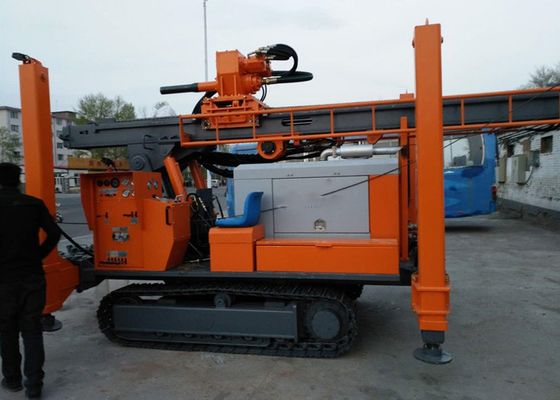

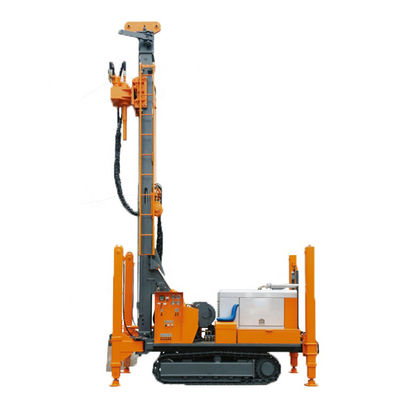

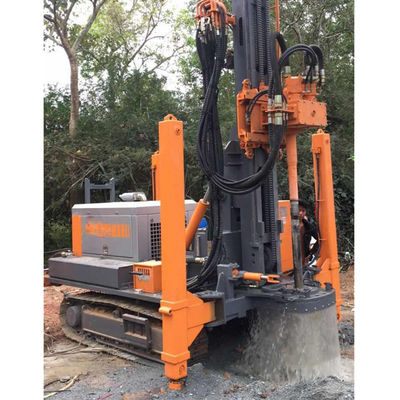

200m Depth Underground Exploration Drilling Rig Equipment

Engineering Machinery 200m Underground Exploration Drill Rig

Product Features
◆ High premium configuration widely used in various well drilling applications. Combined with best features from domestic and international products and key hydraulic components, all global famous brands to ensure reliability, and the leading top classwater well drill rig in China.

◆ Hoist and which capable to lift drill tools and accessories up to 1500kg, reducing workload of operators.

◆ Tramming motor with larger torque for free and fast moving between different work condition sites.

◆ Feeding and lifting with fast and low speed for higher drilling efficiency, high torque rotation unit with two speed adjustable
for different hole ranges and rock conditions.

Technical Specification

Main Specifications
Engine	YC4DK-125 92kW
Drill Pipe Diameter	φ89x3,000mm
Hole Sizes	φ138-219mm
Rotation Torque	7,500 N.m
Rotation Speed	0-70rpm
Feed Type	Oil Cylinder+Chain
Feed Force	50kN
Pull Up Force	130kN
The Pull Up Force of Winch	1,500kg
Travel Distance of Support Jack Oil Cylinder	1,600mm
Tramming Speed	2.5km/h
Gradient	25º
Ground Clearance	300mm
Total Weight	8,500kg
(LxWxH)Transportation Dimensions	6,500 x 2,000 x 2,900mm

200m Depth Underground Exploration Drilling Rig Equipment 0
