200m Geological Exploration Water Borehole Drilling Rig

I'm Online Chat Now

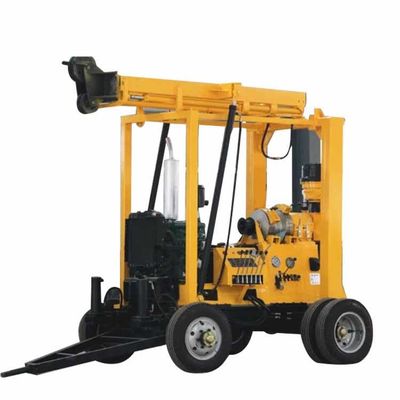

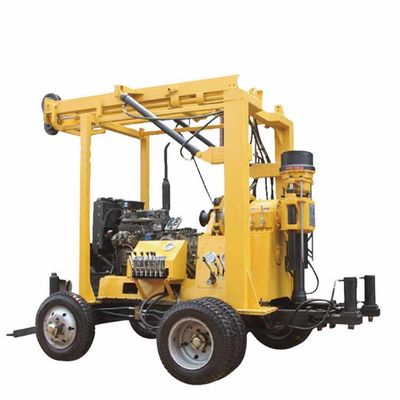

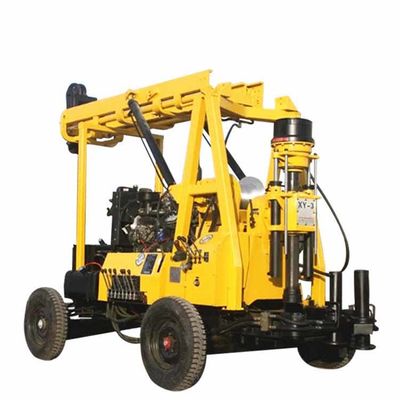

200m Geological Exploration Water Borehole Drilling Rig

200m Geological Exploration Water Borehole Drilling Rig
200m Geological Exploration Water Borehole Drilling Rig 200m Geological Exploration Water Borehole Drilling Rig 200m Geological Exploration Water Borehole Drilling Rig

Large Image :  200m Geological Exploration Water Borehole Drilling Rig

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Keyword: Borehole Core Drilling Machines Applicable Industry: Manufacturing Plant, Construction Works , Energy & Mining
Power Type: Diesel Usage: Water Well, Geological Prospecting
Dimension(L*W*H): 3800*1950*2700mm Voltage: 48V
Weight: 3350kg Feature: High Drilling Efficiency
Application: Geological Exploration,Soil Sampling, Drilling Wells Drilling Diameter: 220-325mm/Customize
End Hole Diameter: 75mm Drilling Depth: 130-200m
Drill Pipe Diameter: 42-60mm Engine: Disel Engine
High Light:

200m Borehole Drilling Equipment

,

Exploration Borehole Drilling Machine

,

Mineral Exploration Drilling Rigs

200m Geological Exploration Water Borehole Drilling Rig





Product Description


Exploration Drilling Rig machine is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,sub grade grouting hole drilling and direct grouting, civil wells and earth temperature central air conditioner,etc. Crawler drilling rig console and platform combination, easy to operate, with platform wide enough to enable the operator and the assistant to leave the mud appropriate height operations, folding walking platform, the control system to focus on the operation platform.



Feature:

1. Hydraulic control drill mast,save time and worker labor.
2. Four hydraulic jacks with max. height 1.3m,the machine can be loaded on to and unloaded from truck.
3. Rubber track is with lighter weight,and does not hurt urban road.
4. Electric-start diesel engine reduces the operator’s labor intensity.
5. Mud pump:BW160 mud pump,with bigger flow displacement and pressure,easy maintenance.
6. Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.



The whole machine parameters

Model

YGD-130

YGD-180

YGD-200

Drill hole depth

130m

180m

200m

Maximum opening diameter

Φ75-Φ220mm

Φ75-Φ220mm

Φ75-Φ325mm

Final hole diameter

Φ75mm

Φ75mm

Φ75mm

Drill pipe diameter

Φ42-60mm

Φ42-60mm

Φ42-60mm

Borehole inclination

90°- 75°

90°- 75°

90°- 75°

Power(diesel engine)

13.2/2200kw/r/min

13.2/2200kw/r/min

15/2200kw/r/min

Size

3.8*1.95*2.7m

3.8*1.95*2.7m

3.8*1.95*2.7m

Vertical shaft

Vertical spindle speed

142,285,570r/min

130,480,730,1045r/min

64,28,287,557r/min

Vertical stroke

450mm

450mm

450mm

Crawler chassis

Crawler size/piece

350*90*48mm

350*90*48mm

350*90*48mm

Climbing angle

20°

20°

20°

Moving speed

10km/h

10km/h

10km/h

Hydraulic landing leg valid height

1300mm

1300mm

1300mm

Mud pump

Model

BW160

BW160

BW160

Flow

160L/min

160L/min

160L/min

Maximum pressure

1.3Mpa

1.3Mpa

1.3Mpa

Reciprocating frequency

165times/min

165times/min

165times/min

Inlet hose diameter

Φ51mm

Φ51mm

Φ51mm

Outlet hose diameter

Φ32mm

Φ32mm

Φ32mm



200m Geological Exploration Water Borehole Drilling Rig 0200m Geological Exploration Water Borehole Drilling Rig 1
