Engineering Exploration Drilling Equipment

Engineering Exploration Drilling Equipment
Engineering Exploration Drilling Equipment Engineering Exploration Drilling Equipment

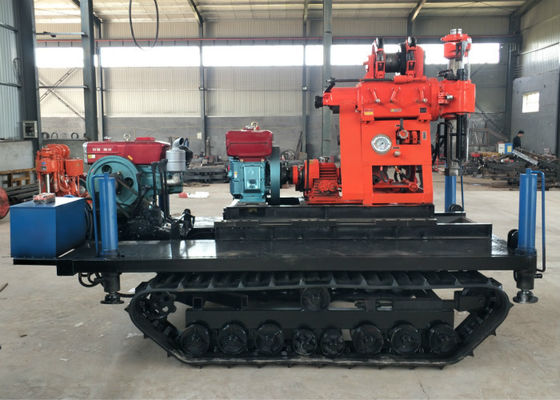

Large Image :  Engineering Exploration Drilling Equipment

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Name: Water Well Drilling Rig Machine Model: XY-1B
Voltage: 380V Color: Red ,Yellow Or OEM
Weight: 1750kg Usage: Water Well
Power Type: Diesel Feature: High Drilling Efficiency
Engine: Diesel Power Applicable Industries: Energy & Mining
High Light:

hydraulic crawler drilling rig


exploration drill rigs

Engineering Exploration Drilling Equipment


XY-1B drill rig is high-speed vertical-shaft light drill for engineering exploration, and it has been widely applied to the geo-exploration of industry, civil building, railway, bridge, hydropower engineering, etc.



  1. 1. It is characterized by high rotation speed and it is applicable to core drilling with small-caliber diamond drill bit.
  2. 2. Its hoist adopts a combination of friction cone and planetary gear, with advanced structure. It is suitable for percussive drilling.
  3. 3. Hydraulic feeding, easy to operate and high drilling efficiency.
  4. 4. Its structure is compact, and the pump is mounted on the drill bottom frame, which occupies a smaller area.
  5. 5. The rotary table adopts a T-shape groove angle changing range; therefore the drill rig is capable of drilling with various inclinations.
  6. 6. No exposure of bevel gear for the case opening, which enables the accuracy and reliability of the falling-in of gears, free from any pollution and with a long service life.

Basic date:


Drilling depth 75 120 150m
Opening hole diameter 130 75 46mm
Drill pipe diameter 42mm
Spindle Turnable Angle 0-360degree
Gross weight of drilling machine(engine not included) 480kg
Dimension (length × width × height) 1800 × 835× 1150 mm
Revolving Plate
Rotate speed 140 305 480 1050 r/min
Maximum torque 550N*m
Driving travel 400mm
Maximum Cylinder driving force 20, 000N
Maximum Cylinder lifting force 30, 000N
Lifting capacity 10, 000N
Bobbin line speed 0.40 0.87 1.48 3.23 m/s
Bobbin diameter 100mm
Rope diameter 9.3mm
Rope capacity 18m
Oil Pump
Type CBF-F420-ALPL wheel oil pump
Displacement 14Ml/r
Normal rated Speed : 2500r/min
Normal Pressure: 20MPa
Slurry pump
Flow rate 100L/min
Max. operating pressure 1.5Mpa
Power Motor Diesel Engine
Type Y160M-4 Changchai ZS1100
Rated power 11KW 12.1KW
Rated Speed 1460r/min 2200r/min
weight 123kg 155kg
