Hydraulic 180m Exploration Water Well Drilling Machine

Product Details

Place of Origin: CHINA

Brand Name: OEM

Certification: ISO,CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden cases standard export package

Delivery Time: 10-20 days working days

Payment Terms: T/T, L/C, T/T, Western Union

Supply Ability: Based on the detailed quotation

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                            Hydraulic Exploration Drilling Equipment, Water Well Exploration Drilling Rig, 180m Exploration Drilling Rig


Keyword:	Exploration Drilling Equipment	Power Type:	Diesel
Dimension(LWH):	2.4m0.7m1.4m	Voltage:	220V
Weight:	560kg	Feature:	High Drilling Efficiency
Drilling Depth:	130	Drill Angle(°):	90-75
Speed(r/min):	142/285/570	Stroke(mm):	450
Applicable Industry:	Construction Works , Energy & Mining

Keyword:	Exploration Drilling Equipment
Power Type:	Diesel
Dimension(LWH):	2.4m0.7m1.4m
Voltage:	220V
Weight:	560kg
Feature:	High Drilling Efficiency
Drilling Depth:	130
Drill Angle(°):	90-75
Speed(r/min):	142/285/570
Stroke(mm):	450
Applicable Industry:	Construction Works , Energy & Mining

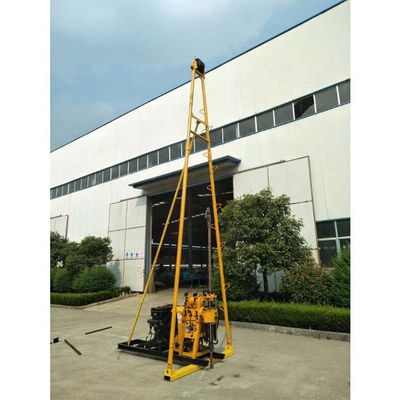

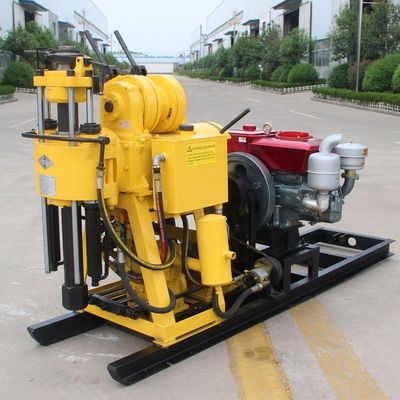

Hydraulic 180m Exploration Water Well Drilling Machine

180M Hydraulic Exploration Water Well Drilling Machine

Product Description

The rig is a wide range of lightweight exploration drilling rigs that are small, lightweight and easy to handle. Suitable for geological survey of railways, water conservancy, bridges, foundations and other buildings, geological core drilling, small grouting holes, blasting holes, water well drilling.
According to the formation, diamonds, composite sheets and alloy drill bits are selected for drilling.

Model	180m
Drilling depth(m)	180
Open hole dia.(mm)	220
End hole dia.(mm)	75
Drill rod dia.(mm)	42-60
drill angle(°)	90-70
Matching power(kW)	13.2
Weight without power(kg)	560
Dimension(mm)	24006001400
Speed(r/min)	142/285/570
Stroke(mm)	450
mud pump dispalcement(L/min)	95

Features:

1. With hydraulic automatic feeding mechanism to improve drilling efficiency;
2. Adopting the autumn card blessing mechanism instead of the chuck, it can realize the non-stop bar and easy to operate;
3. Equipped with a hole bottom pressure gauge to facilitate the understanding of the inside of the hole;
4. Compact structure, concentrated handle, small footprint, light weight, strong decomposability, easy to handle.
