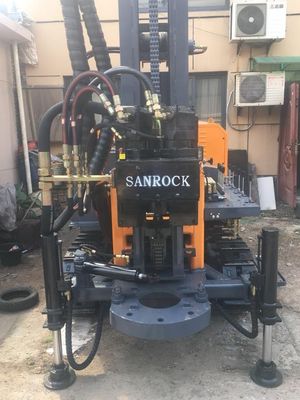

SRKW180 180m Geothermal Water Well Crawler Drilling Rig
| Brand Name: | OEM |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Based on the detailed quotation |
180m Geothermal Drilling Rig
,Hydraulic Crawler Drilling Rig
,Rotary Crawler Drill Machine
SRKW180 180m Geothermal Water Well Crawler Drilling Rig
Products Details
SRKW180 Geothermal Water Well Crawler Drilling Rig is a light, highly-efficient and multifunction drilling device, characterized by advanced structure, convenient use, high operating efficiency, reliability and durability, extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums.
This drill adopts state-of-the-art hydraulic technology, and is equipped with large-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion, dramatically reducing labor intensity, shortening the assistant time, and improving construction efficiency and engineering quality.
Product Specification
|
Drilling depth maximum |
m |
180 |
|
Drilling diameter |
mm |
φ110-202 |
|
Working wind pressure |
mp |
1.05-2.46 |
|
Air consumption |
m3/min |
16-30 |
|
Drill rod length |
m |
2 |
|
Dia. of drill rod |
mm |
φ89/φ76 |
|
Propeller shaft pressure |
t |
0~2.5 |
|
Lifting force |
t |
5 |
|
Cylinder tensile force |
t |
32(4pcs) |
|
Propeller shaft pressure |
m |
0.4 |
|
Slide stroke |
mm |
2380 |
|
Slow lifting speed |
m/min |
8 |
|
Slow forward speed |
m/min |
0~15 |
|
Fast lifting speed |
m/min |
26 |
|
Fast forward speed |
m/min |
51 |
|
Rotary output torque |
N·m |
4200 |
|
Rotary output speed |
Rev / min |
33~67 |
|
Hoist lifting force |
t |
--- |
|
Diesel engine |
---- |
YC4D80 |
|
Parameter of engine |
---- |
58Kw/2400rpm |
|
Travel speed |
km/h |
0~2.5 |
|
Climbing capacity |
℃ |
20 |
|
Weight |
t |
4.5 |
|
Overall dimesion |
m |
2.7×1.55×2.35 |
|
Applicable condition |
Loose layers and bedrock |
|
|
Drilling mode |
Rotation hydraulic pressure |
|
|
Supporting impactor |
Medium-high pressure series |
|
