KG940A 25m High Pressure Crawler Drilling Rig Equipment

I'm Online Chat Now

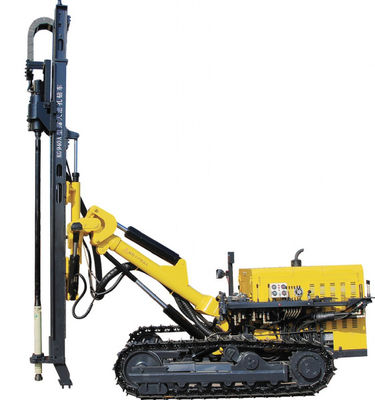

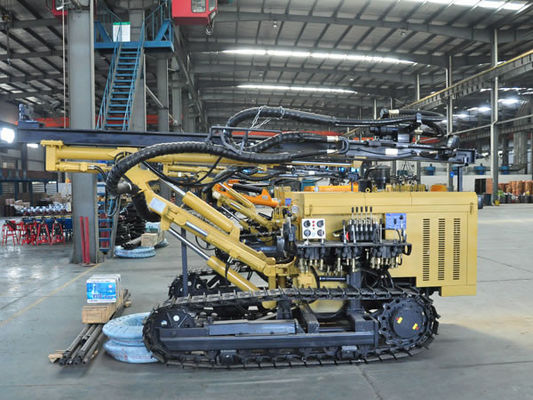

KG940A 25m High Pressure Crawler Drilling Rig Equipment

KG940A 25m High Pressure Crawler Drilling Rig Equipment
KG940A 25m High Pressure Crawler Drilling Rig Equipment KG940A 25m High Pressure Crawler Drilling Rig Equipment

Large Image :  KG940A 25m High Pressure Crawler Drilling Rig Equipment

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Product Name: Mobile Borehole Drilling Machine Rock Hardness: F=6-20
Hole Diameter: 105-165mm Economical Drill Depth: 25m
Pressure: 1.0-2.4Mpa Air Consumption: 1.0-2.4Mpa
Rotating Speed: 0-100r/min Lifting Capacity: 22000N
High Light:

Hydraulic Crawler Drilling Machine

,

Crawler Drilling Rig Equipment

,

25m Crawler Mounted Drill Rig

KG940A 25m High Pressure Crawler Drilling Rig Equipment



Our KG940A high pressure crawler drilling rig has optimized hydraulic system, drill arm components, and carriage parts on the basis of KY140A crawler drilling machine. Specifically, The KG940A type machine has 14% higher rotation speed, and 10% larger propulsion length, making it quite a cost-effective choice.



Advantages of KG940A compare with KY140A



  KG940A KY140A Advantage
Sliding carrier Thicker and stronger sliding carrier, lower friction platen Channel steel sliding carrier Higher rigidity and lower friction
Walking parts Walking reducer (with hydraulic brake) from China Imported walking reducer (hydraulic and mechanical dual braking system) Stronger gradeability and more reliable braking system
Hydraulic system 28.2 pump 32 pump, large new type valve group, new type connector, walking boom Higher flow, lower resistance, convenient operation, and better appearance
Pneumatic system Ball valve Slide valve type impacting gas valve Better operating experience
Rotation speed 62r/min (diesel engine: 1700r/min) 71r/min (diesel engine: 1700r/min)
100r/min (diesel engine: 2400r/min)
14% higher rotation speed
Feeding speed 530mm/s 580mm/s 10% higher feeding speed



Specifications



Rock hardness F=6-20
Hole diameter Ф105-165mm
Economical drill depth 25m
Rotating speed 0-100r/min
Rotation torque 2800N.m
Pressure 1.0-2.4Mpa
Air consumption 12-24m³/min
Lifting capacity 22000N
Propulsion type Hydro-cylinder-chain
Propulsion length 3000mm
Propulsion speed 580 mm/s
Drill rod size Φ76×3000mm/Φ89×3000mm
Gradeability 30°
Ground clearance 320mm
Walking speed 0-2.0km/h
Carriage rising angle 180°
Carriage swing angle Left 95°, right 50°, total 145°
Drill arm pitch angle Down 25°, up 45°, total 70°
Drill arm swing angle Left 45°, right 45°, total 90°
Max. frame floating ±10°
Carriage compensation 1200mm
Diesel engine YC-4D80 (58KW, 2400r/min)
Overall dimension (L×W×H) 5355×2215×2365mm
Total weight 6000kg
Note Pneumatic-hydraulic driving mechanism



Recommend spare parts for KG940A high pressure crawler drilling rig



Drill bit diameter 115mm
Drill rod (Diameter×L) Φ76×3000mm
Drill hammer HD45A
