| Product Name: | Rock Drilling Rig | Rock Hardness: | F=6-20 |
|---|---|---|---|
| Pressure: | 0.7-1.4Mpa | Hole Diameter: | 105-140mm |
| Lifting Capacity: | 2000N.m | Economical Drill Depth: | 25m |
| Rotating Speed: | 0-70r/min | Air Consumption: | ≥15m³/min |
| High Light: | High Pressure Crawler Drilling Machine,Hydraulic Crawler Drilling Rig,Crawler Mounted Drill Rig |
||

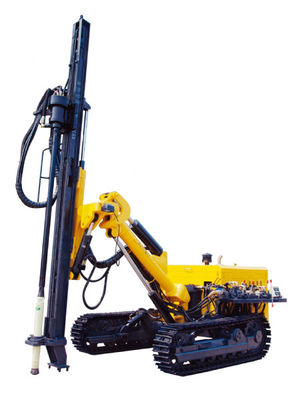

25m Depth Diesel Engine Hydraulic Crawler Drilling Machine
Our KY130 high pressure crawler drilling rig comes with powerful driving system and improved drill arm. The drilling performance is quite desirable.
Feature
1. New type drill arm
The specially designed jib lubbing mechanism and drill arm have more reasonable structures and are easy to be adjusted. The drilling range of the drill carriage is greatly expanded, while low position horizontal holes can be drilled. A high power hydraulic motor is adopted for the high pressure crawler drilling rig to obtain great gradeability and tractive effort.
2. Safe and stable walking mechanism
The reliable automatic crawler belt leveling and great braking system can not only make the vehicle walk stable, but also greatly reduce the ground's impact to the vehicle. A unique chain fixing device can enhance the walking reliability of the high pressure crawler drilling rig to a great extent.
3. Powerful four-cylinder diesel engine
The engine's excellent towing power give the construction vehicle great gradeability.
Specifications
| Model | KY130 High pressure crawler drilling rig |
| Rock hardness | F=6-20 |
| Hole diameter | Ф105-140mm |
| Economical drilling depth | 25m |
| Pressure | 0.7-1.4Mpa |
| Air consumption | ≥15m³/min |
| Rotating speed | 0-70r/min |
| Rotating torque | 2000N.m |
| Lifting capacity | 18000N |
| Propulsion type | Hydro-cylinder-chain |
| Propulsion length | 3000mm |
| Drill rod specification | Φ64×3000mm/Φ89×3000mm |
| Gradeability | 30° |
| Ground clearance | 320mm |
| Walking speed | 2km/h |
| Drill arm rising angles | Down 15°, Up 50°, Total 65° |
| Drill arm swing angle | Left 45°, Right 45°, Total 90° |
| Carriage swing angle | Left 50°, Right 50°, Total 100° |
| Carriage pitch angle | 180° |
| Carriage compensation | 1200mm |
| Diesel engine | QC 498(39kW 2400r/min) |
| Overall dimension (L×W×H) | 5600×2340×2550(mm) |
| Total weight | 5500kg |
| Note | Pneumatic-hydraulic driving mechanism |
Recommended spare parts for KY130
| Drill bit diameter | 115mm |
| Drill rod (Diameter×L) | Φ 76×3000mm |
| Drill hammer | HD45A |
