SRKW180 180m Geothermal Water Well Crawler Drilling Rig

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Rotary Drilling Rig

Power Type:

Diesel

Weight:

4.5T

Usage:

Water Well

Voltage:

58kW

Diesel Engine:

Yuchai 4D80

Air Consumption:

16-30 Cubic Meter/min

Applicable Industries:

Farms, Construction Works , Energy & Mining

Working Pressure:

1.2-2.5 Mpa

Engine Data:

58KW/2400/rpm

Drill Pipe Diameter:

76mm Standard / 89mm Option

Drilling Method:

Down The Hole Hammer

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

180m Geothermal Drilling Rig

Hydraulic Crawler Drilling Rig

Rotary Crawler Drill Machine

Product Description

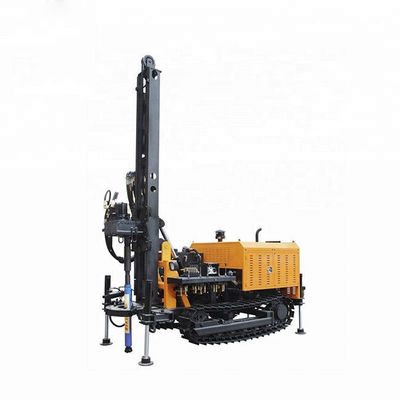

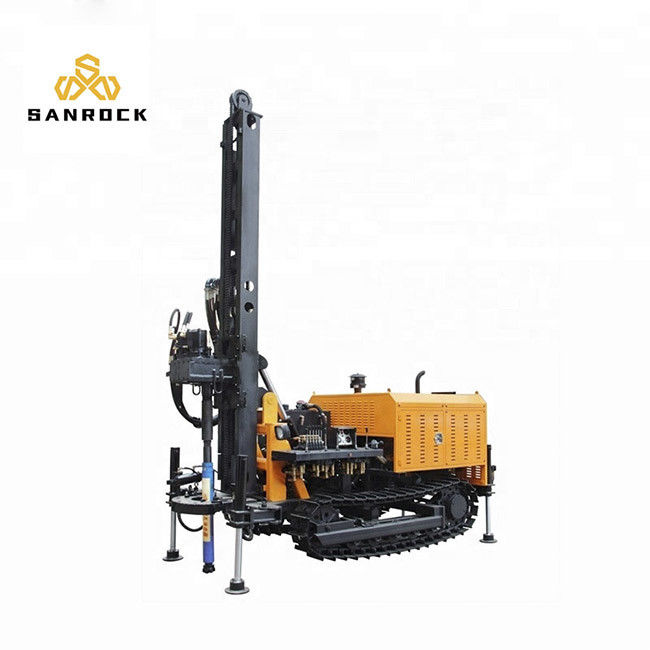

SRKW180 180m Geothermal Water Well Crawler Drilling Rig

Products Details

SRKW180 Geothermal Water Well Crawler Drilling Rig is a light, highly-efficient and multifunction drilling device, characterized by advanced structure, convenient use, high operating efficiency, reliability and durability, extensively applicable to drilling water wells, agricultural irrigation wells, geothermal air-conditioning wells and well holes of other purposes, especially applicable to water intake projects in mountain regions and at rock stratums.

This drill adopts state-of-the-art hydraulic technology, and is equipped with large-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion, dramatically reducing labor intensity, shortening the assistant time, and improving construction efficiency and engineering quality.

Product Specification

Drilling depth maximum	m	180
Drilling diameter	mm	φ110-202
Working wind pressure	mp	1.05-2.46
Air consumption	m³/min	16-30
Drill rod length	m	2
Dia. of drill rod	mm	φ89/φ76
Propeller shaft pressure	t	0~2.5
Lifting force	t	5
Cylinder tensile force	t	32(4pcs)
Propeller shaft pressure	m	0.4
Slide stroke	mm	2380
Slow lifting speed	m/min	8
Slow forward speed	m/min	0~15
Fast lifting speed	m/min	26
Fast forward speed	m/min	51
Rotary output torque	N·m	4200
Rotary output speed	Rev / min	33~67
Hoist lifting force	t	---
Diesel engine	----	YC4D80
Parameter of engine	----	58Kw/2400rpm
Travel speed	km/h	0~2.5
Climbing capacity	℃	20
Weight	t	4.5
Overall dimesion	m	2.7×1.55×2.35
Applicable condition	Loose layers and bedrock
Drilling mode	Rotation hydraulic pressure
Supporting impactor	Medium-high pressure series

Product Package

SRKW180 180m Geothermal Water Well Crawler Drilling Rig 0

SRKW180 180m Geothermal Water Well Crawler Drilling Rig 1
