Engineering Exploration Drilling Equipment

Product Details

Place of Origin: CHINA

Brand Name: OEM

Certification: ISO,CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden cases standard export package

Delivery Time: 10-20 days working days

Payment Terms: T/T, L/C, T/T, Western Union

Supply Ability: Based on the detailed quotation

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    hydraulic crawler drilling rig, exploration drill rigs


Name:	Water Well Drilling Rig Machine	Model:	XY-1B
Voltage:	380V	Color:	Red ,Yellow Or OEM
Weight:	1750kg	Usage:	Water Well
Power Type:	Diesel	Feature:	High Drilling Efficiency
Engine:	Diesel Power	Applicable Industries:	Energy & Mining

Name:	Water Well Drilling Rig Machine
Model:	XY-1B
Voltage:	380V
Color:	Red ,Yellow Or OEM
Weight:	1750kg
Usage:	Water Well
Power Type:	Diesel
Feature:	High Drilling Efficiency
Engine:	Diesel Power
Applicable Industries:	Energy & Mining

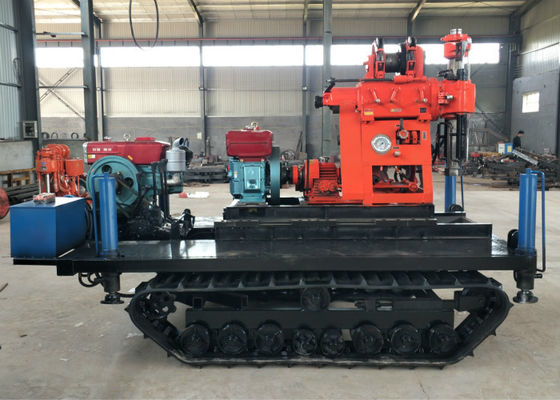

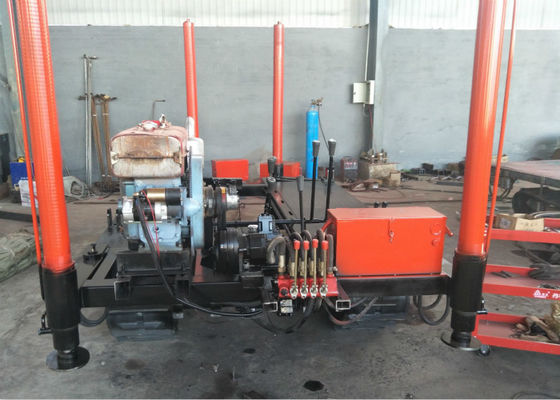

Engineering Exploration Drilling Equipment

Engineering Exploration Drilling Equipment

XY-1B drill rig is high-speed vertical-shaft light drill for engineering exploration, and it has been widely applied to the geo-exploration of industry, civil building, railway, bridge, hydropower engineering, etc.

Features:

1. It is characterized by high rotation speed and it is applicable to core drilling with small-caliber diamond drill bit.
2. Its hoist adopts a combination of friction cone and planetary gear, with advanced structure. It is suitable for percussive drilling.
3. Hydraulic feeding, easy to operate and high drilling efficiency.
4. Its structure is compact, and the pump is mounted on the drill bottom frame, which occupies a smaller area.
5. The rotary table adopts a T-shape groove angle changing range; therefore the drill rig is capable of drilling with various inclinations.
6. No exposure of bevel gear for the case opening, which enables the accuracy and reliability of the falling-in of gears, free from any pollution and with a long service life.

Basic date:

Drilling depth		75 120 150m
Opening hole diameter		130 75 46mm
Drill pipe diameter		42mm
Spindle Turnable Angle		0-360degree
Gross weight of drilling machine(engine not included)		480kg
Dimension (length × width × height)		1800 × 835× 1150 mm
Revolving Plate
Rotate speed		140 305 480 1050 r/min
Maximum torque		550N*m
Driving travel		400mm
Maximum Cylinder driving force		20, 000N
Maximum Cylinder lifting force		30, 000N
Lifter
Lifting capacity		10, 000N
Bobbin line speed		0.40 0.87 1.48 3.23 m/s
Bobbin diameter		100mm
Rope diameter		9.3mm
Rope capacity		18m
Oil Pump
Type		CBF-F420-ALPL wheel oil pump
Displacement		14Ml/r
Normal rated Speed :		2500r/min
Normal Pressure:		20MPa
Slurry pump
Model
Flow rate		100L/min
Max. operating pressure		1.5Mpa
Power Motor Diesel Engine
Type	Y160M-4	Changchai ZS1100
Rated power	11KW	12.1KW
Rated Speed	1460r/min	2200r/min
weight	123kg	155kg
