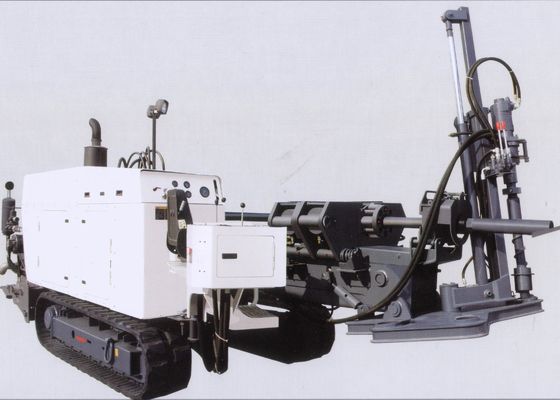

Diesel Power Directional Boring Equipment

Diesel Power Directional Boring Equipment
Diesel Power Directional Boring Equipment Diesel Power Directional Boring Equipment Diesel Power Directional Boring Equipment

Large Image :  Diesel Power Directional Boring Equipment

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Name: Horizontal Boring Equipment Model: SHD45
Power Type: Diesel Rated Power: 179KW
Max Pull Back: 450KN Tubing Diameter: 89mm
Overall Weight: 13.5t Applicable Industries: Construction Works , HDD Machine
Type: Crawler
High Light:

13.5T Horizontal Boring Equipment


Hydraulic HDD Drilling Equipment


Horizontal Underground Boring Equipment

Diesel Power Directional Boring Equipment


Basic Information:


Horizontal directional drilling or directional boring is a method of installing undergroud pipes,conduits or cable by using a surface lauched drilling rig. This method results in little impact on the surrounding area and is mainly used when trenching or excavating is not practical.

SHD series Horizontal Directional Drills are mainly used in the trenchless piping construction and re-placement of the underground pipe.The SHD Series Horizontal Directional Drills have the advantages of advanced performance,high efficiency and comfortable operation,Many key components adopt international famous products to guarantee the quality. They are the ideal machines for the construction of the water piping,gas piping,electricity,telecommunication,heating system,crude oil industry.


We are a professional horizontal directional drill manufacturer in China.Our horizontal directional drilling rigs are primarily used in trenchless piping construction and replacement of the underground pipes. Having the advantages of advanced performance,high efficiency and ease of operation.Our horizontal directional drills are increasingly used in the construction of the water piping, gas piping, electricity,telecommunication,heating systems,and crude oil industry.


Performance And Characteristic:

1. Pluralities of advanced control technologies are adopted,including the PLC control,electro-hydraulic proportion control,load sensitive control,etc.
2. The dilling rod automatic disassembly and assembly device can improve the working efficiency,relieves the labor intensity and manual error operation of the operators, and reduces the construction personnel and the construction cost.
3. Automatic anchor: The down and the up of the anchor is driven by hydraulics.The anchor is great in force and is easy and convenient to operate.
4. The dual-speed power head is operated with low speed when drilling and dragging back to ensure smooth construction,and can speed up to slide with 2 times of speed to reduce the auxiliary time and improve the working efficiency when returning and disassembling the dilling rod with empty loads.
5. The engine has the turbine torque increment characteristic,which can instantly increase the power to ensure the drilling power when coming across the complex geology.

6. The power head has high rotation speed, good boring effect and high construction eficiency.
7. Single-lever operation:lt is convenient to precisely control and is easy and comfortable to operate in
performing various functions such as thrust/pullback and rotary ,etc.
8. The rope controller can carry out the disassembly and assembly vehicle operation with single person ,with
safe and high-efficiency.
9. The floating vice with patent technology can effectively prolong the service life of the dilling rod.
10. The engine,hydraulic parameter monitoring alarm and a plurality of safety protection are provided to effectively protect the safety of the operators and the machines.


Technical Parameter:


Model Unit SHD45
Engine   CUMMINS
Rated power KW 179
Max.pullback KN 450
Max. thrusting KN 450
Spindle torque(max) N.m 18000
Spindle speed r/min 0-100
Backreaming diameter mm 1300
Tubing length (single) m 4.5
Tubing diameter mm 89
Entry angle ° 8-20
Mud pressure (max) bar 80
Mud flow rate (max) L/min 450
Dimension (L* W* H) m 8*2.3*2.4
Overall weight t 13.5



Diesel Power Directional Boring Equipment 0
