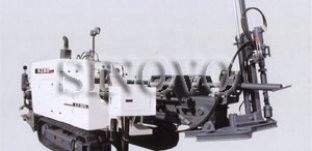

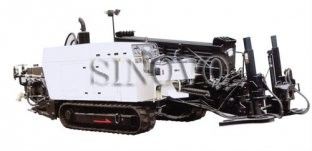

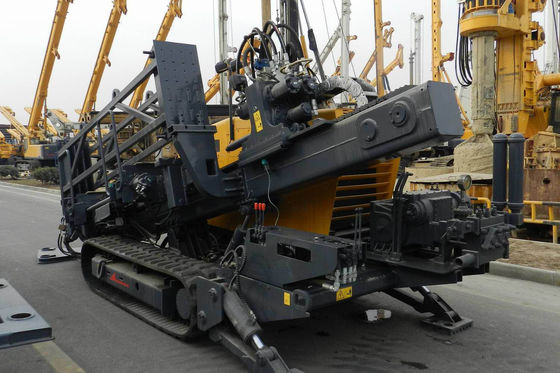

Engineering Machinery Horizontal Directional Drilling Rigs Engineering Machinery Horizontal Directional Drilling Rigs Engineering Machinery Horizontal Directional Drilling Rigs

Large Image :  Engineering Machinery Horizontal Directional Drilling Rigs

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Name: Underground Horizontal Boring Machine Type: Crawler
Applicable Industries: Construction Works , HDD Machine Engine Power: 140 KW
Spindle Speed: 0-120 R/min Overall Weight: 12500 Kg
Drilling Way: Rotary
High Light:

Underground Horizontal Boring Machine

,

Engineering Machinery HDD Drilling Machine

,

HDD Horizontal Directional Drilling

Engineering Machinery Horizontal Directional Drilling Rigs



Horizontal Directional Drilling or directional boring is a method of installing undergroud pipes, conduits or cable by using a surface lauched drilling rig.This method results in little impact on the surrounding area and is mainly used when trenching or excavating is not practical.



 We are a professional horizontal directional drill manufacturer in China. Our horizontal directional drilling rigs are primarily used in trenchless piping construction and replacement of the underground pipes.Having the advantages of advancedperformance, high efficiency and ease of operation. Our horizontal directional drills are increasingly used in the construction of the water piping, gas piping, electricity, telecommunication, heating systems, and crude oil industry


Technical parameter



Model

SHD28

SHD32

SHD68

SHD100



EURO

standards

U.S.

standards

EURO

standards

U.S.

standards

EURO

standards

U.S.

standards

EURO

standards

U.S.

standards

Engine power

140 KW

188hp

140 KW

188hp

250 KW

335hp

392 KW

526hp

Max.pullback

280 KN

62947lbf

320KN

71939lbf

680 KN

152870lbf

1000 KN

224809lbf

Max. thrusting

280KN

62947lbf

200KN

44962lbf

680KN

152870lbf

1000KN

224809lbf

Spindle torque(max)

10000N.m

7376lbf.ft

12000N.m

8851lbf.ft

27000N.m

19914lbf.ft

55000N.m

40566lbf.ft

Spindle speed

0-120 r/min

0-120 r/min

0-140 r/min

0-140 r/min

0-100 r/min

0-100 r/min

0-80 r/min

0-80 r/min

Backreaming

diameter

750 mm

30inch

800 mm

31.5inch

1000 mm

39.4inch

1200 mm

47inch

Tubing length(single)

3m

9.8feet

3m

9.8feet

6m

19.7feet

9.6m

31.5feet

Tubing diame

-ter

73 mm

2.9inch

73 mm

2.9inch

102 mm

4inch

127 mm

5inch

Entry angle

10-23°

10-23°

10-23°

10-23°

10-18°

10-18°

10-18°

10-28°

Mud flow rate(max)

250 L/min

55UK

gallon/min

320 L/min

70.4UK

gallon/min

600 L/min

132UK

gallon/min

1200 L/min

264UK

gallon/min

Mud pressure

(max)

80 bar

1160psi

80 bar

1160psi

100 bar

1450psi

200 bar

2901psi

Overall weight

12500 kg

27558lb

10500kg

23149lb

25000 kg

55116lb

32000 kg

70548lb





















Contact Details
Beijing Silk Road Enterprise Management Services Co.,LTD
Send your inquiry directly to us (0 / 3000)
