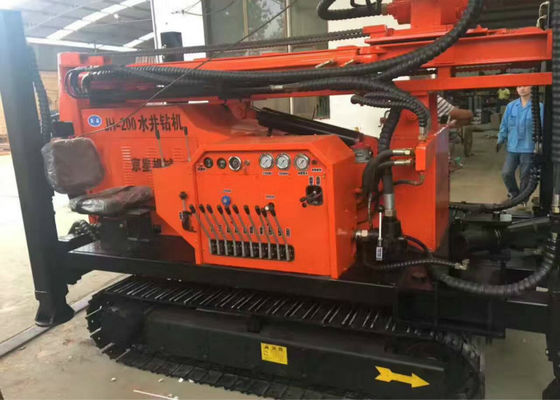

High Speed Engineering Machinery Horizontal Drilling Rig
|
High Speed Engineering Machinery Horizontal Drilling Rig
| Brand Name: | OEM |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Based on the detailed quotation |
180m Horizontal Directional Drilling Rigs
,Hydraulic HDD Drilling Machine
,Horizontal Water well drilling machine
High Speed Engineering Machinery Horizontal Drilling Rig
Features:
♦ With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.
♦ The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replacedwithout shutdown, high efficiency, safe and reliable.
♦ A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole
♦ Compact structure,small volume,lightweight,high detachability,easy transportation and suitable for the operations in plains ormountion areas.

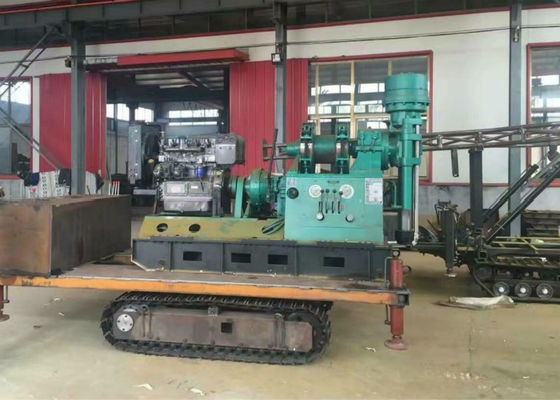

XY-1A Horizontal Directional Drilling Rigs is a light type machine at high speed withhydraulic feeding. XY-1A (YJ) and XY-1A-1 are designed on the basisof XY-1 A.
Applications:
♦ Drillings for the general exploration and investigation of solidmineral deposit, engineering geotectonic survey and concretestructure inspection holes.
♦ Diamond drill bit, alloy drill bit and steel roller drill bit and so on areavailable for drilling according to different geological structures.
♦ When the final holes are respectively 75mm and 46mm in diameter,the rated hole depths are separately 100m and 180m. Themaximumof depth may not
exceed 110% of that drilled in each hole.Themaximum allowable hole diameter is 150 mm.
Main parameters
| Unity machine parameter | |
| Drilling depth | 30--180m |
| Drill rod caliber | 50 42mm |
| End hole caliber | 75 46mm |
| Max. open hloe caliber | 220mm |
| Drilling angle | 90°~75° |
| Drill weight (No include power) | 610kg |
| Unity machine dimensions | 2.1*0.9*1.3m |
| Spindle | |
| spindle speed | 130, 300, 480, 730, 830, 1045r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 1600kg |
| Single line lifting speed | 1.06, 0.67, 0.32m/s |
| Wirerope caliber | 13mm |
| Wirerope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug folldgate belt width | 50mm |
| Distance between drill and hole | 230mm |
| Mud pump | |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Power | |
| Diesle engine | S1105 18HP |
| Electric motor | Y160M—4 15KW |
