Lightweight Horizontal Water Well Drilling Rig Machine
|
Lightweight Horizontal Water Well Drilling Rig Machine
| Brand Name: | OEM |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | Based on the detailed quotation |
Detail Information
Place of Origin:
CHINA
Certification:
ISO,CE
Type:
Hydraulic Water Well Drilling Machine
Power(W):
22-28kw
Voltage:
380V
Drilling Diameter:
75-300mm
Color:
Red ,Yellow Or OEM
Feature:
High Drilling Efficiency
Power Type:
Diesel
Applicable Industries:
Construction Works , HDD Machine
Packaging Details:
Wooden cases standard export package
Supply Ability:
Based on the detailed quotation
Highlight:
Hydraulic Water Well Drilling Machine
,Water Well Drilling Rig Machine
,Engineering HDD Drilling Machine
Product Description

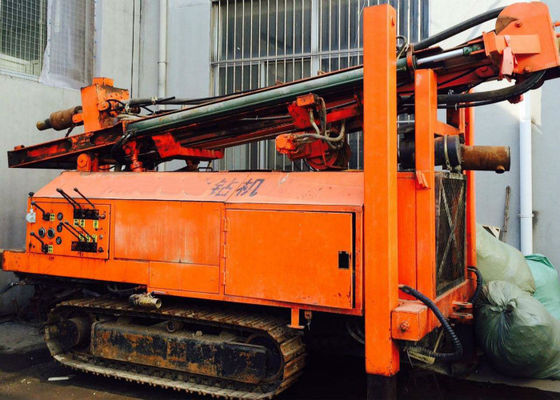

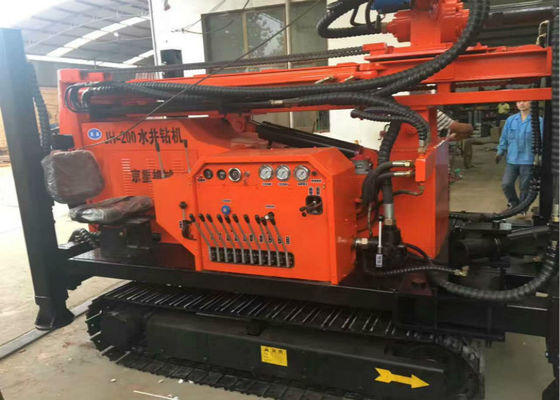

Lightweight Horizontal Water Well Drilling Rig Machine
1. horizontal water well drilling is lightweight, efficient, multi purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures.
2. water drilling rigs is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement,loose gravel drilling rock formation connected with a variety of engineering
| Drill rig | Hoist | |||
| Drilling Depth | 500/300/230/100 feet | Lifting capacity (single rope) | 15KN | |
| Drill rod diameter | 1.65 inch | Lifting rotating speed | 18/36/84/168 r/min | |
| Pilot Hole diameter | 5.9 inch | Drum circle linear speed (2 layers) | 32.8/65.3/144.3/288.3ft/min | |
| Final Hole diameter | 2.95 / 1.81 inch | Drum Diameter | 5.51 inch | |
| Drill angle | 90-75 0 | Wire rope diameter | 0.37 inch | |
| Moving stroke | 13.78 inch | Wire rope length | 114.8 feet | |
| Weight | 500kg | Brake diameter | 9.92 inch | |
| Dimension(L x W x H) | 4.70 x 2.30 x 4.18 feet | Brake belt width | 1.97 inch | |
| Swivel head | Engine (Diesel or Electric motor) | |||
| Spindle speed (4-shift) | 71/142/310/620 r/min | Diesel engine | S1115 | |
| Spindle stroke | 17.71 inch | Rated power | 16.2KW | |
| Forward speed | 13.2 ft /min | Rated speed | 2200 r/min | |
| Reverse speed | 9.85 ft/min | Electric motor | Y160M-4 | |
| Spindle torque | 15 KN | Rated power | 11KW | |
| Spindle lifting capacity | 25 KN | Rated speed | 1460 r/min | |
