XY-1A 180m Water Well Horizontal Directional Drilling Rigs

I'm Online Chat Now

XY-1A 180m Water Well Horizontal Directional Drilling Rigs

XY-1A 180m Water Well Horizontal Directional Drilling Rigs
XY-1A 180m Water Well Horizontal Directional Drilling Rigs

Large Image :  XY-1A 180m Water Well Horizontal Directional Drilling Rigs

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Type: Horizontal And Directional Drilling Voltage: 220V
Model Number: XY-1A Usage: Geological Core Drilling
Power Type: Diesel Or Electric Drilling Depth: 30--180m
Drill Rod Caliber: 50 42mm Drilling Angle: 90°~75°
High Light:

180m Horizontal Directional Drilling Rigs

,

Water Well HDD Drilling Machine

,

180m Horizontal And Directional Drilling

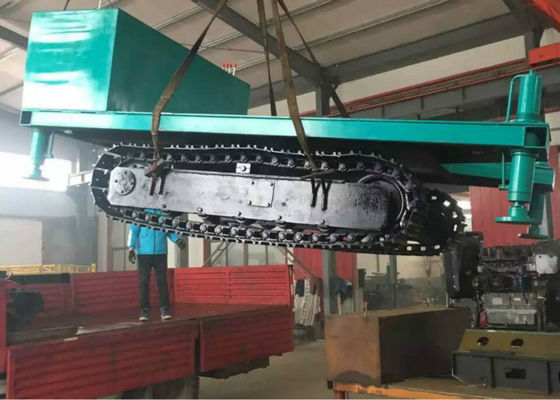

Water Well Horizontal Drilling Machine , XY-1A Crawler Mounted Drill Rig


Product Description


The XY-1A drilling rig is a kind of widely used and hydraulic feeding drill, which has the characteristics of big power, great lifting force (2T) and high transmission torque.



1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.


2 Geological core drilling, physical prospecting.

3 Small grout Confucius, drill hole drilling.

4 Small well drilling.



Technology Parameter



Unity machine parameter
Drilling depth 30--180m
Drill rod caliber 50 42mm
End hole caliber 75 46mm
Max. open hloe caliber 220mm
Drilling angle 90°~75°
Drill weight (No include power) 610kg
Unity machine dimensions 2.1×0.9×1.3m
Spindle
spindle speed 130, 300, 480, 730, 830, 1045r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 1600kg
Single line lifting speed 1.06, 0.67, 0.32m/s
Wirerope caliber 13mm
Wirerope cubic measure 35m
Hug floodgate caliber 254mm
Hug folldgate belt width 50mm
Distance between drill and hole 230mm
Mud pump
Type Horizontal single urn twin-action
Displacement 170L/min
Maximum pressure 1.5Mpa
Work pressure 0.7Mpa
Power
Diesle engine S1105 18HP
Electric motor Y160M—4 15KW
