|Name:||Horizontal Directional Drilling Equipment||Engine Power:||153 KW|
|Engine Power:||153/2200 KW||Max Carriage Speed:||38m/min|
|Max Mud Pump Flow:||320L/min|
Hydraulic Horizontal Drilling Equipment,
12T Horizontal Drilling Rig,
Hydraulic HDD Drilling Equipment

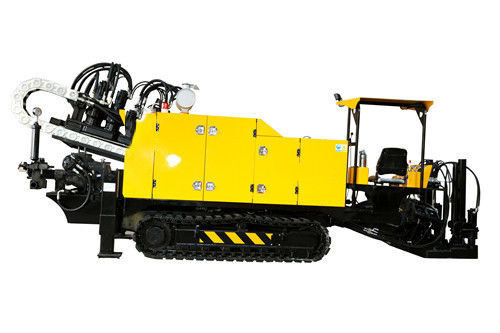

Hydraulic Horizontal Directional Drilling Rigs
horizontal directional drilling rig, which has compact structure and attractive appearance, adopts various advanced technologies and the proprietary technologies of the company, and its main performance parameters and control technologies have reached the world advanced level. The main components of hydraulic system, electrical system and transmission system are of top-grade domestic and international brand, and high reliability.
1. Equipped with Cummins 153kw engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in city area.
2. Power head thrust and rotation adopts cycloid motor from Eaton, with large torsion, stable performance. Rotation have two speed , drilling faster and more torque; Thrust have 3 speed, let the work finished more faster. Thrust and rotation system both use hydraulic control system.
American style surface, looks so powerful.
Simple electric circuit design, low failure rate, convenient maintenance.
3. Equipped with φ73×3000mm or φ83×3000mm drill rods moderate machine size adapts to narrow and small working area and high efficient construction as well.
Mud flow control system, can depends customer project save water.
4. Rod auto loading system , Auto anchoring system and push and pulling force increase to 70ton can be choose separate.
|Max Thrust force||KN||350/700|
|Max Pullback force||KN||350/700|
|Max Rotary speed||Rpm||138/110|
|Max carriage speed||m/min||38|
|Max Mud pump flow||L/min||320|
|Max Mud pressure||Mpa||8±0.5|
|Main machine size||mm||6800x22400x22600|
|Diameter of drilling rod||mm||Φ73 or Φ83|
|Length of drilling rod||m||3|
|Max diameter of pullback pipe||mm||φ150 – φ1000|
|Max construction length||m||500|
