High Speed ZGSJ450 Hydraulic Track Mounted Drilling Rig

I'm Online Chat Now

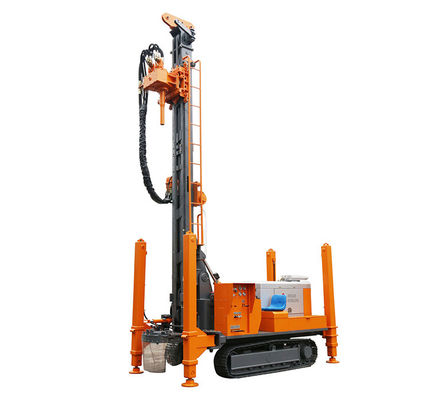

High Speed ZGSJ450 Hydraulic Track Mounted Drilling Rig

High Speed ZGSJ450 Hydraulic Track Mounted Drilling Rig
High Speed ZGSJ450 Hydraulic Track Mounted Drilling Rig High Speed ZGSJ450 Hydraulic Track Mounted Drilling Rig High Speed ZGSJ450 Hydraulic Track Mounted Drilling Rig

Large Image :  High Speed ZGSJ450 Hydraulic Track Mounted Drilling Rig

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Power Pack: YC4DK-125 Dimension: 6500*2000*2900mm
Hole Depth(Max): Max Deep220m(Hole Φ219~254m);Max Deep300m(Hole Φ138~178m) Hole Diameter: Max Deep220m(Hole Φ219~254m);Max Deep300m(Hole Φ138~178m)
Tramming Speed: 2.5km/h Pipe Type: Φ76*3m/Φ89*3m/Φ102*3m
Weight: 8500KG Rotation Torque: 7500N.m
High Light:

Track Mounted Drilling Rig Machine

,

Track Mounted Water Well Drilling Rig

,

450m Track Mounted Drilling Rig

High Speed ZGSJ450 Hydraulic Track Mounted Drilling Rig



ZGSJ 450 track-type multi-functional well drill is a new type, high-efficiency and multi-functional hydraulic drill with new design;This machine is mainly used for drilling Wells, detection Wells, geothermal air conditioning Wells and other drilling operations.



1. High-end configuration, which can be widely used in multiple drilling fields. Combining the advantages of excellent products at home and abroad, import brands of key hydraulic components are selected to ensure the reliability of the whole machine.



2. The hoisting winding machine can be flexibly hoisted the drilling tools or auxiliary tools within 1.5 tons, which can greatly reduce the labor intensity of the operator.



3. Equipped with two-speed walking motor, it can switch at high and low speed to adapt to different road conditions.



4. Pushing and lifting are equipped with fast and slow gears, which can improve the drilling efficiency.The rotating speed has two gears, and the rotating speed can be adjusted, suitable for different aperture and geological conditions.



Product Advantages

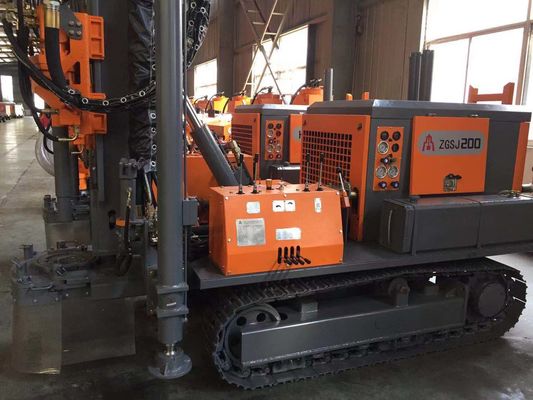

High Speed ZGSJ450 Hydraulic Track Mounted Drilling Rig 0



1. imported tramming motor for more powerful tramming and driving ;Standard engineering omachinery tracks , strong and durable;



2. Durable roller guide,side sliding of rotary head,convenient for hose reel installation and removal



3. Position can be adjusted upon different diameters of rods and DTH hammer to ensure accurate and reliable positioning.



Main Technical Parameters



High Speed ZGSJ450 Hydraulic Track Mounted Drilling Rig 1

Applications:
water well, wire-line coring drilling, geothermic well, general investigation and exploration. Road and tall building ground sill exploration and other foundation working.
