Multi Function Truck Mounted Hydraulic Drilling Rig Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Name:

Track Mounted Drilling Machine

Hole Depth:

30m

Initial Hole Dia:

150mm

Central Opening Dia.:

172mm

Stroke:

650mm

Drilling Tower Height:

6.5m

Weight(including Truck):

4050kg

Dimensions (L×W×H):

5825×1995×2680mm

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

30m Truck Mounted Drilling Rig

Hydraulic Truck Mounted Drilling Rig

Hydraulic Truck Mounted Drill Rig

Product Description

Multi Function Truck Mounted Hydraulic Drilling Rig Machine

Applications:

G-1 is mainly used in engineering geological exploration and construction for highway, bridge, dam, and civil, industrial, national defence engineering,as well.

Quick Detail:

1. G-1 can be used in engineering geological exploration, survey and exploration of solid mineral deposit, inspect hole of various concrete structure, blast hole, etc.

2. It also can be used as the core drilling rig with the mud pump, It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving.
3. The rig is a truck mounted top head drive drill, it is mechanical drive and hydraulic fed.

Description:

1. G-1 is mechanic driven and hydraulic feed.
2. It is a truck mounted top head drive drill. It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving.

3. It also can be used as the core drilling rig with the mud pump, It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving.
4. Its design is advanced, reasonable and its operation is easy and reliable.

Specifications:

Hole depth	30m	Initial hole dia	150mm
Central opening dia.	172mm
Speed(forward and reverse)	21;43;52;105;135;272rpm
Stroke	650mm
Max .lifting capacity	15KN
Max .feeding capacity	6KN
Hoist	Max .lifting capacity (single line):	15KN
	Lifting speed:	0.19；0.38；0.46；0.92；1.18；2.73m/s
Power	Diesel engine	8.82kw,2000rpm
Drilling Tower Height	6.5m
Weight(including truck)	4050kg
Truck	JW5047TZJ light-duty
Dimensions (L×W×H)	5825×1995×2680mm

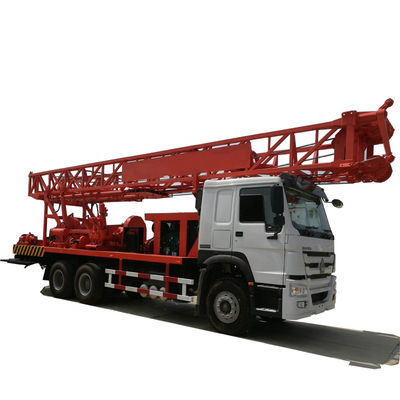

Multi Function Truck Mounted Hydraulic Drilling Rig Machine 0
