Geological Exploration Water Borehole Drilling Rig Machine
Applications:
1. Core drilling with carbide and diamond bit .
2. Engineering geological exploration.
3. Blast hole, exploring gas.
Quick Detail:

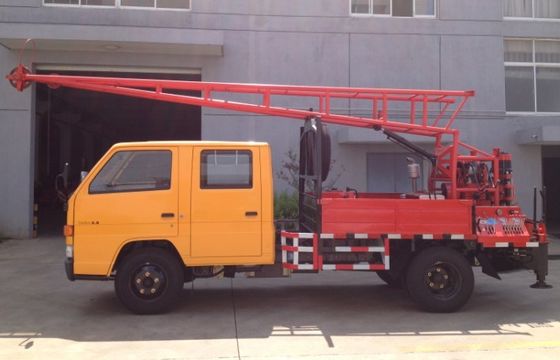

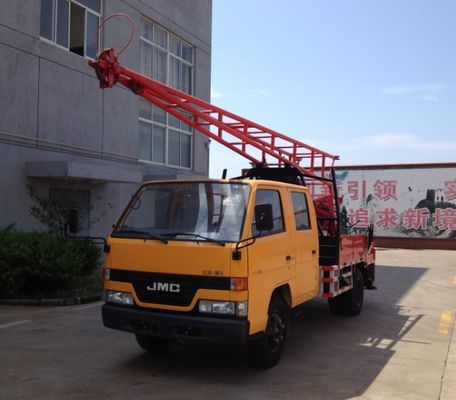

1. GC-150 is a truck-mounted spindle type drilling rig. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blast hole and inspect hole of various concrete structure, etc.
2. It has large input power and output torque. Its drilling capacity is strong. It’s speed range is extensively. It’s capacity of dealing with accidents is good. It has an oil pressure feed structure and it’s labor intensity is low.
3. Oening the clinostat, it is easy to lift and loose the drill.
Description:
1. GC-150 is a truck-mounted spindle type drilling rig. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blast hole and inspect hole of various concrete structure, etc.
2. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.
3. It has large input power and output torque. Its drilling capacity is strong. It’s speed range is extensively. It’s capacity of dealing with accidents is well. It has an oil pressure feed structure and it’s labor intensity is low.
4. It’s working efficiency is high. It’s Dedicated device is easy to operate and disassemble.
5.By using hydraulic chuck, It is in strong and steady clamping force. By using the hydraulic fed, the drilling rig can move back directly.
6. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed.
Specifications:
| Hole depth | 150m | Rod dia | 75mm |
| Hole depth | 30m | Rod dia | 150mm |
| Spindle speed | Forward speed:61;163;338;654r/min | ||
| Reverse speed:45r/min | |||
| Stroke of spindle | 500mm | ||
| Max .lifting capacity | 25KN | ||
| Spindle I.D. | 53mm/62mm | ||
| Max .feeding capacity | 20KN | ||
| .Main winch | Steel Wire Cable Dia | 9.3mm | |
| Max .lifting capacity (single line): |
15KN | ||
| Lifting speed(the third layer): | 0.187m/s,0.374m/s | ||
| Power | Diesel engine | ZS1110M | |
| Mud pump | BW-160 | ||
| Weight (less engine) | 4290kg | ||
| Dimensions (L×W×H): | 6500×1950×3050mm | ||
