Product Details:
Payment & Shipping Terms:
|
| Name: | Truck Mounted Drilling Rig | Drill Depth: | 100m |
|---|---|---|---|
| Stroke Of Spindle: | 4000mm | Power: | Diesel Engine |
| Dimensions (L×W×H): | 9390×2420×3730mm | Mast Height: | 9m |
| OEM: | Acceptable | Applicable Industries: | Construction Works , Energy & Mining |
| Usage: | Water Well | ||
| High Light: | Truck Mounted Rotary Drilling Rig,Truck Mounted Water Well Drilling Rig,100m Truck Mounted Drilling Rig |
||

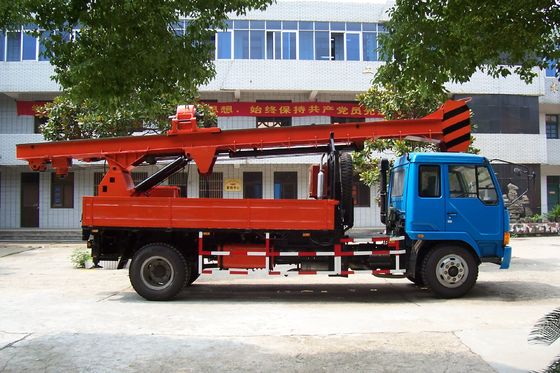

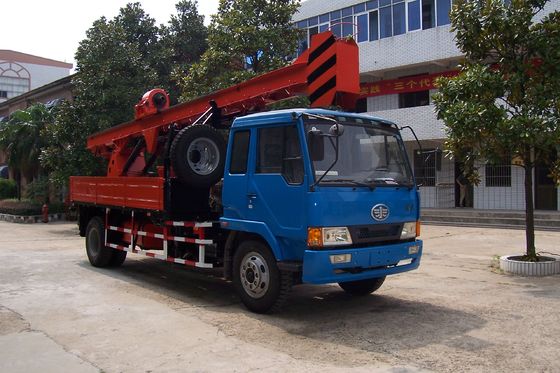

Mechanical Driven 100m G-3 Truck Mounted Drilling Rig
Quick Detail:
1. G-3 is mechanical driven and hydraulic control.G-3 is truck-mounted and has a high mobility.
2. Clamped with belleville spring and loosened with hydraulic cylinder, the hydraulic chuck is adopted with three-jaws self centering. It is in strong and steady clamping force.
3. It is mainly suitable for exploration of railway, bridge, dam etc. It is widely applied in coal mine, hydrological and engineering drilling. It can also be used in the fields of water discharge tunnel drilling as well as foundation pile construction in small diameter.
Description:
1. G-3 is a truck-mounted high mechanical power head drill.G-3 is truck-mounted and has a high mobility.It can be used for rotary, percussive, vibratory and static pressure drilling as well as pressure soil sampling and pipe driving.
2. Clamped with belleville spring and loosened with hydraulic cylinder, the hydraulic chuck is adopted with three-jaws self centering. It is in strong and steady clamping force.
3. It is mainly suitable for exploration of railway , bridge, dam etc. It is widely applied in coal mine, hydrological and engineering drilling. It can also be used in the fields of water discharge tunnel drilling as well as foundation pile construction in small diameter.
4. It is in reasonable structure, light weight, powerful capacity, multiuse, steady performance, high responsibility and high standardization and generalization.
Specifications:
| Engineering geological hole | Initial hole diameter:150mm,final hole diameter:110mm | Drill depth | 100m |
| Foundation pile | Initial hole diameter:600mm | Drill depth | 15m |
| Spindle speed | Forward and reverse speed:12;18;36;53;80;116;162;237rpm | |
| Stroke of spindle | 4000mm | |
| Max .lifting capacity | 40KN | |
| Max .feeding capacity | 30KN | |
| .Hoist (Type: Planetary gearing transmission) |
Max .lifting capacity (single line): |
30KN |
| Lifting speed: | 0.21; 0.65; 1.41; 2.86 m/s | |
| Mast height | 9m | |
| Clamping force | 120KN | |
| Torque | 7.2KN.m | |
| Power | Diesel engine | 40kw,2000rpm |
| Dimensions (L×W×H): | 9390×2420×3730mm | |
Applications:
1. G-3 is mainly used in engineering geological exploration and construction for highway, bridge, dam, and civil, industrial, national defence engineering, as well.
2. Explore the natural gas, oil and so on.
3. It also could drilling for water.
