| Name: | Truck Mounted Water Well Drilling Rig | Central Opening Dia: | 172mm |
|---|---|---|---|
| Stroke: | 650mm | Weight(including Truck): | 4050kg |
| Drilling Tower Height: | 6.5m | Power: | Diesel Engine |
| Hole Depth: | 30m | Dimensions (L×W×H): | 5900×1860×2880mm |
| High Light: | Truck Mounted Exploration Drilling Rig,Truck Mounted Geological Drilling Rig,Truck Mounted Drill Rig |
||

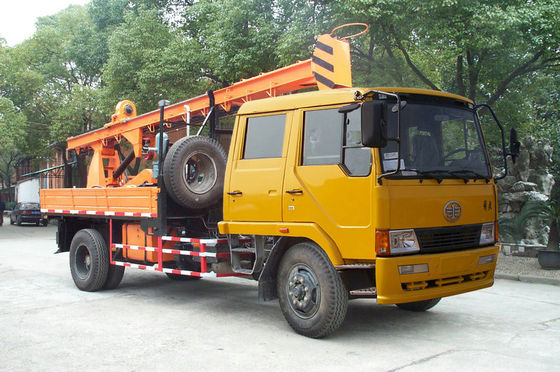

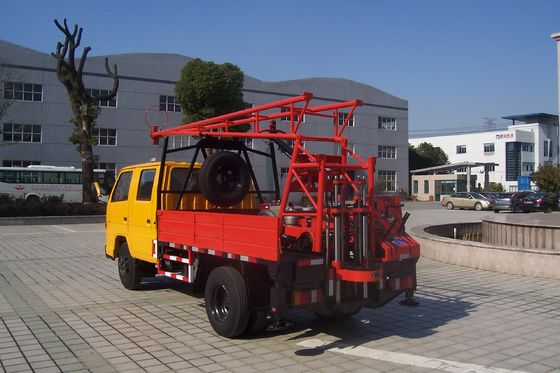

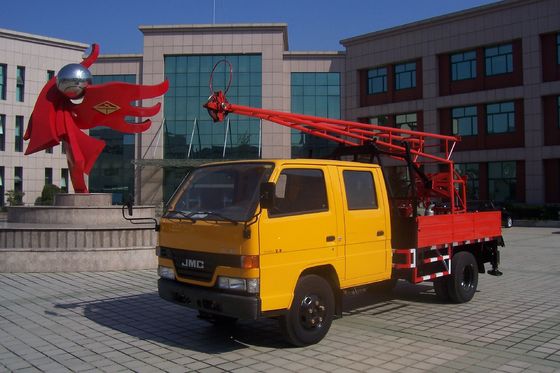

Engineering Geological Exploration Truck Mounted Drilling Rig
Quick Detail:
1. G-1 can be used in engineering geological exploration, survey and exploration of solid mineral deposit, inspect hole of various concrete structure, blast hole, etc.
2. It also can be used as the core drilling rig with the mud pump, It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving
3. The rig is a truck mounted top head drive drill, it is mechanical drive and hydraulic fed.
Description:
1. G-1 is mechanic driven and hydraulic fed .
2. It is a truck mounted top head drive drill. It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving .
3. It also can be used as the core drilling rig with the mud pump, It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving
4. Its design is advanced, reasonable and its operation is easy and reliable.
Specifications:
| Hole depth | 30m | Initial hole dia | 150mm |
|
Central opening dia
|
172mm | ||
| Speed(forward and reverse) | 21;43;52;105;135;272rpm | ||
| Stroke | 650mm | ||
| Max .lifting capacity | 15KN | ||
| Max .feeding capacity | 6KN | ||
| Hoist |
Max .lifting capacity (single line): |
15KN | |
| Lifting speed: | 0.19；0.38；0.46；0.92；1.18；2.73m/s | ||
| Power | Diesel engine | 8.82kw,2000rpm | |
| Drilling Tower Height | 6.5m | ||
| Weight(including truck) | 4050kg | ||
| Truck |
|
||
| Dimensions (L×W×H) | 5900×1860×2880mm | ||
Applications:
G-1 is mainly used in engineering geological exploration and construction for highway, bridge, dam, and civil, industrial, national defence engineering,as well.
