Hydraulic Truck Mounted Drilling Rig

Product Details

Place of Origin: CHINA

Brand Name: OEM

Certification: ISO,CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden cases standard export package

Delivery Time: 10-20 days working days

Payment Terms: T/T, L/C, T/T, Western Union

Supply Ability: Based on the detailed quotation

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                            Trailer Mounted Drilling Rigs, Water Borehole Drilling Rig, Tractor Mounted Water Well Drilling Rig


Name:	Tractor Mounted Water Well Drilling Rig	Stroke:	3400mm
Max .lifting Capacity:	25KN	Dimensions (L×W×H):	8250×2495×3460mm
Drilling Tower Height:	7.5m	Applicable Industries:	Construction Works , Energy & Mining
OEM:	Acceptable	Power Type:	Diesel Engine
Usage:	Water Well

Name:	Tractor Mounted Water Well Drilling Rig
Stroke:	3400mm
Max .lifting Capacity:	25KN
Dimensions (L×W×H):	8250×2495×3460mm
Drilling Tower Height:	7.5m
Applicable Industries:	Construction Works , Energy & Mining
OEM:	Acceptable
Power Type:	Diesel Engine
Usage:	Water Well

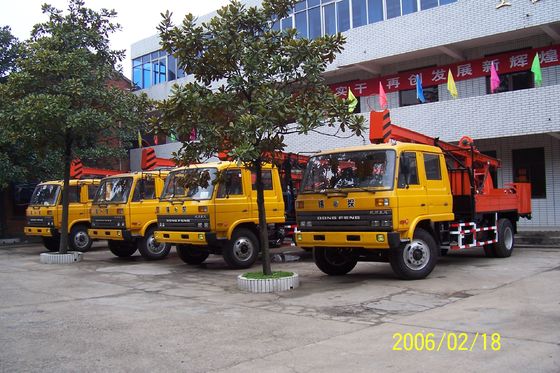

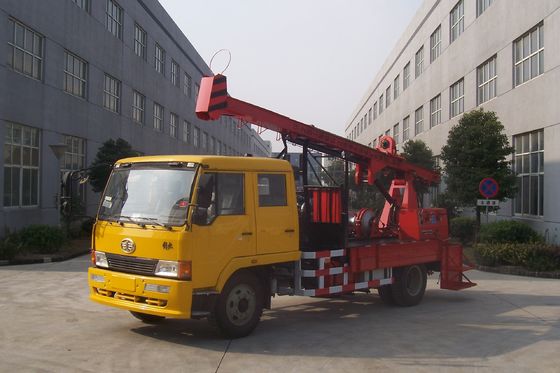

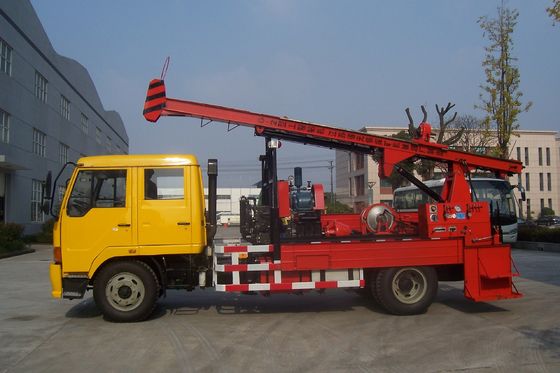

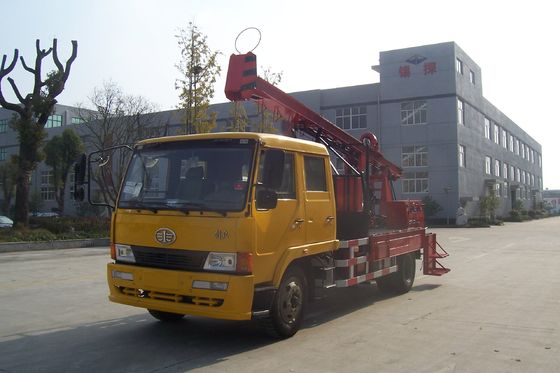

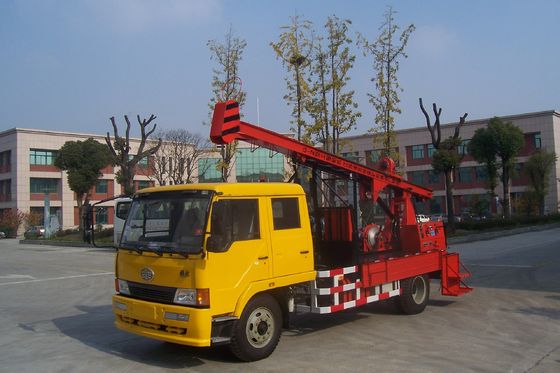

Hydraulic Truck Mounted Drilling Rig

Hydraulic Truck Mounted Drilling Rig

Description:

1.G-2 is mechanical driven and hydraulic control.

2. It is a truck-mounted high mechanical power head drill. It can be used for rotary, percussive, vibratory and static pressure drilling as well as pressure soil sampling and pipe driving.

3. It is a perfect drill for new drilling methods, such as reverse circulation, down hole drill et

Quick Detail:

1.G-2 is truck-mounted and has a high mobility.
2.Its design is compact and reasonable. Its operation is easy and reliable.
3.It is a perfect drill for new drilling methods, such as reverse circulation, down hole drill etc.

Specifications:

Hole depth	50m	hole dia	150mm
Speed(forward and reverse)	17;36;43;94;104;227rpm
Stroke	3400mm
Max .lifting capacity	25KN
Max .feeding capacity	20KN
Hoist	Max .lifting capacity (single line):	30KN
	Lifting speed:	0.20；0.53;1.29m/s
Power	Diesel engine	40kw,2000rpm
Drilling Tower Height	7.5m
Weight(including truck)	10100kg
Dimensions (L×W×H)	8250×2495×3460mm

Applications:

1.G-2 is mainly used in engineering geological exploration and construction for highway, bridge, dam, and civil, industrial, national defence engineering, as well.

2.Explore the natural gas, oil and so on.

2.It also could drilling for water.
