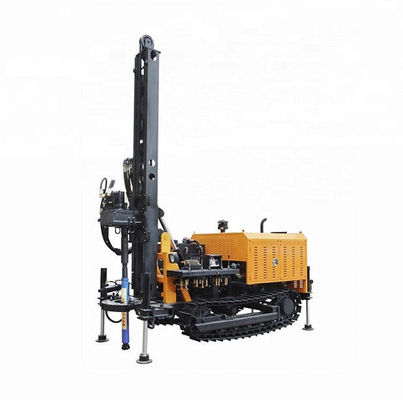

120m Diesel Power Type Hydraulic Crawler Drilling Machine
Products Details
This Water Well Crawler Drilling Rig is a light, highly-efficient and multifunction drilling device, mainly applicable to drilling water wells, air-conditioning holes and well holes of other purposes. This drill can do drilling work at different stratums, with a hole depth of 120m.
This drilling rig adopts state-of-the-art hydraulic technology, and is equipped with large-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion.
An engine produced by a well-known factory supplies power for the hydraulic system. Two-level air filter and air compressor air suction design can prolong the service life of the diesel engine.
Product Specification
|
Total weight (Kg) |
6500 |
|
|
Overall Dimension (mm) |
6000×2300×2500 |
|
|
Travel speed (Km/h) |
0~2.5 |
|
|
Dynamic parameters(Yuchai) |
YC4D08 |
|
|
Power parameters |
58Kw/2400rpm |
|
|
Ground clearance(mm) |
245 |
|
|
Leg cylinder stroke (mm) |
460 |
|
|
Hammer |
(Choose)HD65 |
|
|
Climbing capacity(°) |
15 |
|
|
Depth of blast hole(m) |
120 |
|
|
Working wind pressure(MPa) |
1.05-2.46 |
|
|
Air consumption (m3/min) |
16-30 |
|
|
Dia. of drill rod (mm) |
(Choose)φ89x3000 |
|
|
Drill rod length (mm) |
3000 |
|
|
Dia of bit(mm) |
φ115-180 |
|
|
Propelling oil cylinder stroke (mm) |
1750 |
|
|
Propulsive force(N) |
30000 |
|
|
Lifting force(N) |
70000 |
|
|
Rotation speed (rpm) |
Slow |
50 |
|
Fast |
100 |
|
|
Rotary torque (N·m) |
3200 |
|
