120m Diesel Power Hydraulic Crawler Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Water Well Drilling Equipment

Power Type:

Diesel

Usage:

Water Well

Weight:

3.5T

Drill Pipe Diameter:

89mm

Drilling Method:

Down The Hole Hammer

Hammer:

HD65

Air Consumption:

16-30 Cubic Meter/min

Diesel Engine:

Yuchai 4D80

Power:

58KW/2400/rpm

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Water Well Drilling Equipment

Hydraulic Water Well Drilling Machine

120m Portable Water Drilling Machine

Product Description

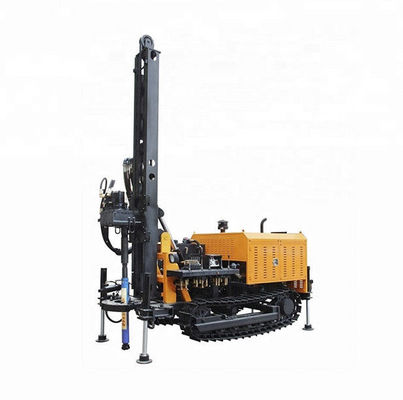

120m Diesel Power Type Hydraulic Crawler Drilling Machine

Products Details

This Water Well Crawler Drilling Rig is a light, highly-efficient and multifunction drilling device, mainly applicable to drilling water wells, air-conditioning holes and well holes of other purposes. This drill can do drilling work at different stratums, with a hole depth of 120m.

This drilling rig adopts state-of-the-art hydraulic technology, and is equipped with large-torque hydraulic motor rotation and large-bore hydraulic cylinder propulsion.

An engine produced by a well-known factory supplies power for the hydraulic system. Two-level air filter and air compressor air suction design can prolong the service life of the diesel engine.

Product Specification

Total weight (Kg)		6500
Overall Dimension (mm)		6000×2300×2500
Travel speed (Km/h)		0~2.5
Dynamic parameters(Yuchai)		YC4D08
Power parameters		58Kw/2400rpm
Ground clearance(mm)		245
Leg cylinder stroke (mm)		460
Hammer		(Choose)HD65
Climbing capacity(°)		15
Depth of blast hole(m)		120
Working wind pressure(MPa)		1.05-2.46
Air consumption (m³/min)		16-30
Dia. of drill rod (mm)		(Choose)φ89x3000
Drill rod length (mm)		3000
Dia of bit(mm)		φ115-180
Propelling oil cylinder stroke (mm)		1750
Propulsive force(N)		30000
Lifting force(N)		70000
Rotation speed (rpm)	Slow	50
	Fast	100
Rotary torque (N·m)		3200

Product Package

120m Diesel Power Hydraulic Crawler Drilling Machine 0
