Product Details:
Payment & Shipping Terms:
|
| Product Name: | Truck Mounted Water Well Drilling Machine | Weight: | 10000 KGS |
|---|---|---|---|
| Drilling Depth: | 200m | Working Pressure: | 1.05~2.46Mpa |
| Air Consumption: | 16~30m3/min | Stroke Of Feeding Hydraulic Cylinder: | 1750mm |
| Feeding Force: | 30000N | Propulsion Cylinder Stroke: | 70000N |
| High Light: | Hydraulic Water Well Drilling Machine,Truck Mounted Water Well Drilling Rig |
||

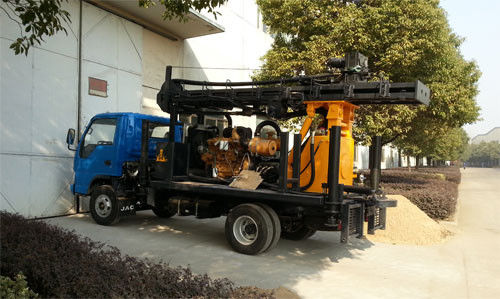

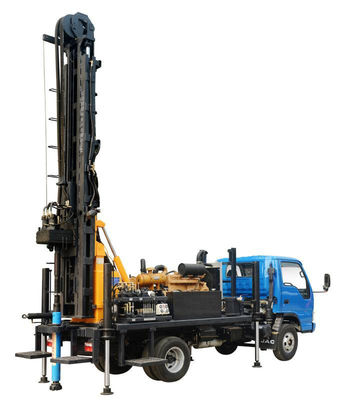

KW20 Hydraulic Truck Mounted Water Well Drilling Rig Machine
KW20 truck mounted hydraulic water well drilling rigs is designed experience in production water well drilling rigs,this drill uses special truck chassis, convenient travel.it is a light,high efficiency and poly-function drilling machinery. It is mainly used for drilling well,agricultural irrigative well and other well drilling, especially for coteaus and projects which takes water from underground. This crawler which is equipped with big torque hydraulic pump and big diameter. hydraulic cylinder uses new hydraulic technic.
Specifications:
| KW20 truck-mounted water well drilling rig | |
| Whole weight of the drilling rig | 10000 KGS |
| Dimension of the drilling rig | Working: 7900*2500*7000mm |
| Transporting:8500*2450*3500mm | |
| Technical parameter of the KW20 water well drilling rig | |
| Stroke of hydraulic leg cylinder | 1000mm (max 1500mm) |
| Drilling depth | 200m |
| Hole diameter | 4~10inch (Down the hole drilling) 4~20inch (Mud drilling) |
| Working pressure | 1.05~2.46Mpa |
| Air consumption | 16~30m3/min |
| Drilling rod | 89mm diameter, 3000mm long Thread API 2 3/8 |
| Stroke of feeding hydraulic cylinder | 1750mm |
| Feeding force | 30000N |
| Lifting force | 70000N |
| Rotating speed | 50rpm(slow), 100rpm(quick) |
| Rotating torque | 3200N.m |
| Diesel Engine of the KW20 water well drilling rig | |
| Model | YC6B125-K10, |
| Rated power | 92KW/2200RPM |
| Peak torque | 330N.m/1500rpm |
| Displacement | 3.9L |
| Bore | 102mm |
| Stroke | 120mm |
| Aspiration | Turbocharged |
| Technical parameter of 4*4 Truck undercarriage | |
| Model | Dongfeng, EQ1093F6D |
| Color | Blue |
| Fuel | Diesel oil |
| Diesel engine | Cummins EQB160-20 5880ml/118KW |
| Dimension | 7060*2470*2475mm |
| Wheelbase | 3950mm |
| Front wheel base / Back wheel base | 1810/1800mm |
| Approach angle / departure angle | 42.5/26 |
| Front overhang / rear overhang | 1065/1895 |
| Max working speed | 94km/h |
| Axle NO. | 2 |
| Tyre Spec and NO. | 9.00-20 |
