8 Tyre Trailer SPJT300 Rotary Water Well Drilling Rig

I'm Online Chat Now

8 Tyre Trailer SPJT300 Rotary Water Well Drilling Rig

8 Tyre Trailer SPJT300 Rotary Water Well Drilling Rig
8 Tyre Trailer SPJT300 Rotary Water Well Drilling Rig 8 Tyre Trailer SPJT300 Rotary Water Well Drilling Rig

Large Image :  8 Tyre Trailer SPJT300 Rotary Water Well Drilling Rig

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Usage: Water Well Chassis: 8-tyre Trailer
Drilling Tech: Turnplate Rotary Mud Pump: 850L/min, 20mpa
Drill Tower: 11.6m Height Drill Rod: 6.5m Per Piece
Power: 65kw Diesel Hoist: 2 Sets
Max Drill Depth: 300m Hole Diameter: 450mm
High Light:

SPJT300 Rotary Well Drilling Rig

,

Rotary Water Well Drilling Rig

8 Tyre Trailer SPJT300 Rotary Water Well Drilling Rig

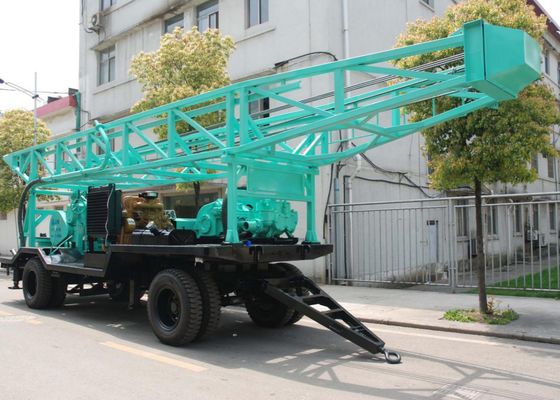

SPJT300 Water Well Drilling Rig is installed on a trailer .  This drilling rig can work through rotary mud circulation or DTH drilling technique. SPjT300 trailer chassis water well drilling rig is suitable for clay, sand, graveland pebble, and rock stratum. We add special device to add & reduce pressure during drilling which can enhance efficiency a lot. High hydraulic leg and hydraulic tower are chosen to save labor and keep safety during working.



◎ when drilling, the drilling rig uses an independent diesel engine as power, and uses mechanical transmission to make the mechanical winch and rotary table work at the same time;

◎ the drilling rig is equipped with four hydraulic support legs, which can move at the same time as well as independently, facilitating quick leveling of the drilling rig. Moreover, the two rear legs can extend horizontally, thus improving the stability of the whole drilling rig. Using hydraulic cylinders to lift the tower is convenient, reliable and simple to use, which can meet the construction requirements of different working conditions to the greatest extent.

◎ the main parts of the drilling rig, such as winch, turntable, gearbox, tower and chassis, are produced by our factory independently, with stable and reliable performance.

◎ the drilling rig is suitable for drilling high-rise buildings, bridges, geological mines, ports, dam foundations, water well construction, complicated ground source heat pump, etc.

◎ the drilling rig is simple to operate, has strong usability, convenient maintenance, less investment and quick effect, and is the best product for users.



MAIN PATAMETER



drilling hole diameter

500mm

drill tower rated load

180KN
 depth 300m



drill tower height



11.6m(SPJT300)



turnplate max. torque

8.0KN/m dimension 12m×2.47m×3.4m
speed clockwise(reverse)44,77,139rpm power 80hp

turnplate diameter

450mm  transportation status



in bulk/trailer

lifting capacity of single rope of main hoist

30KN

weight of main rig

13.5t(SPJT300)

lifting capacity of single rope of secondary hoist

20KN



weight of drill rod, pipe &bit

6.6t
Mud pump BW850/20 (20Mpa pressure/850L/min)



Configure of one set of spjt300



no  code  name quantity remark
A main rig   1 group
1 1C-0  turnplate 1group
2 2-0 hoist 1group



Advanced gearbox and clutch

3 3B-0 transmission 1group Model 4135Na
4 FT0-0 drill tower 1set
5 BW850/20  mud pump 1set  including all tools and hose
6    accessories 1 set (steel wire 80m plus 120m, protecting-cover etc.)
B  tools
1 FG1-0 water tap 1 piece
2 FG2-0 block group 1piece
3 FG3B-0/8000 kelly rod 1piece L=7650mm
4 FG5-0  lifter 1piece
5 FG7-4 joint 1piece
6 FG8-0  fork 1piece
7 FG9A-0 fork 1piece
8 2-6A-0 shaft 1piece
9 21/2" hose 1piece

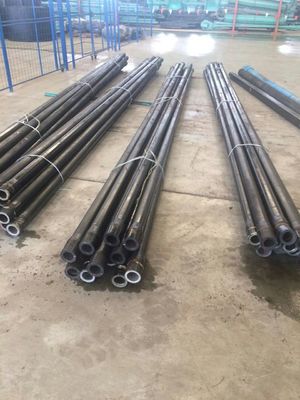

10 FG12-4/6500/R780 drill rod 89*10*6500mm 43 pieces Material:R780
11 FG7-1/2  joint 43pairs






Mud pump Type


Horizontal double cylinder reciprocating double action piston pump



Cylinder diameter

150(mm)




Stroke
180(mm)

Pump speed
82 r/min 58r/min

Flow
850(L/min) 600(L/min)

Pressure
2.0(MPa) 3.0(MPa)

Power
37(Kw)

shape size
2000*1030*1400(mm)

Weight
1500(kg)
