| Type: | Water Well And Core Drilling Machine | Power Type: | Diesel |
|---|---|---|---|
| Model Number: | 200 | Voltage: | 220V/380V |
| Rated Pressure: | 12.5Mpa | Spindle Stroke: | 450mm |
| Usage: | Water Well,railways, Core Drilling, Physical Prospecting | Displacement: | 20ml/r |
| High Light: | Portable Hydraulic Water Well Drilling Rig,Water Well Drilling Rig Machine |
||

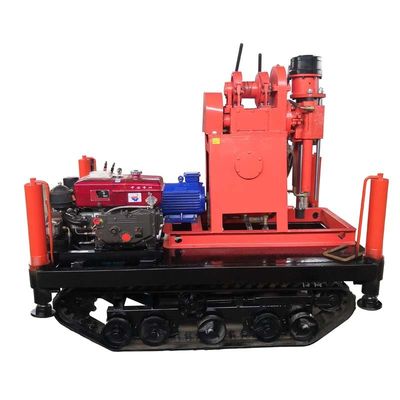

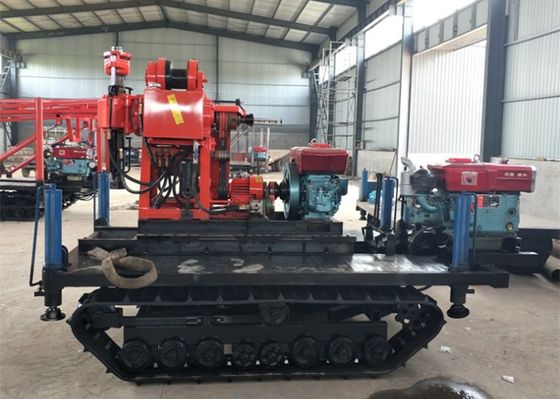

GK 200 portable water well drilling rig equipped with BW-160 mud pump and 22HP diesel engine, Max. drilling depth can be 200m with the opening diameter of 75-400mm, trailer, crawler, and tractor chassis for choice.
a. the machine is equipped with crawler chassis device, easy to move with fast speed.
b. hydraulic oil pressure feed device, improve drilling efficiency.
c. pressure gauge display the condition of the bottom of the drill hole.
d. drill mast controlled by hydraulic cylinder, improve the efficiency diesel engine adopt the electric starter, to reduce the labor intensity.
| Drilling depth | 230m |
| Maximum borehole caliber | 300mm |
| Minimum borehole caliber | 75mm |
| Diameter of Drill pipe | 42/50/60mm |
| Drilling angle | 90°~75° |
| Weight(Not include power) | 1150kg |
| Unity machine dimension | 2750*950*1770mm |
| 2.Vertical Spindle | |
| Spindle rotating speed | 64/128/287/557r/min |
| Spindle stroke | 450mm |
| 3.Hoist | |
| Max. single line lifting capacity | 2400kg |
| Reel lifting speed | 1.64m/s |
| Steel wire rope diameter | 13mm |
| Steel wire rope capacity | 35m |
| Hug floodgate diameter | 245mm |
| Hug floodgate belt width | 70mm |
| Movable distance | 400mm |
| 4. Mud pump | |
| Type | BW-160 |
| Type | Horizontal Single Cylinder with double function |
| Max. Discharge | Diesel engine 170L/min |
| Electrical Motor 140L/min | |
| Max. Pressure | 3MPa |
| Work Pressure | 1.5MPa |
| 5. Power | |
| Diesel engine | 22HP |
| Electric Motor | 15KW |
| 6. Drilling tower | |
| Type | Integrated on drilling rig |
| Control system | Hydraulic |
| 7. Trailer chassis | |
| Type | 4 wheels |
