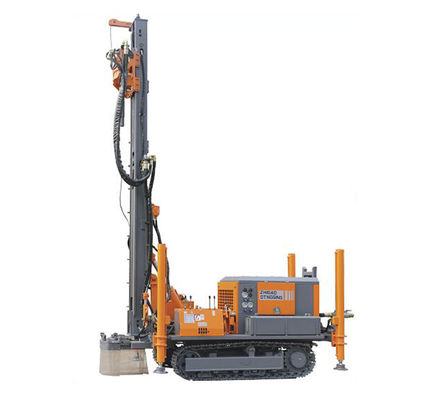

Track Type ZGSJ-200 200m Water Well Drilling Machine

I'm Online Chat Now

Track Type ZGSJ-200 200m Water Well Drilling Machine

Track Type ZGSJ-200 200m Water Well Drilling Machine
Track Type ZGSJ-200 200m Water Well Drilling Machine Track Type ZGSJ-200 200m Water Well Drilling Machine Track Type ZGSJ-200 200m Water Well Drilling Machine Track Type ZGSJ-200 200m Water Well Drilling Machine

Large Image :  Track Type ZGSJ-200 200m Water Well Drilling Machine

Product Details:

Place of Origin: CHINA
Brand Name: OEM
Certification: ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden cases standard export package
Delivery Time: 10-20 days working days
Payment Terms: T/T, L/C, T/T, Western Union
Supply Ability: Based on the detailed quotation
Detailed Product Description
Name: Water Well Drilling Equipment Power Pack: Yuchai YCD4R22T-80(59KW)
Dimension: 5400*1900*2500mm Weight: 5.7T
Hole Depth(Max): 200m Drill Pipe Diameter: Φ110-200m
Tramming Speed: 2.4km/h Pipe Type: Φ76*3m/Φ89*3m
Rotation Torque: High:2800N.m;Slow:5600N.m
High Light:

200m hydraulic drilling machine

,

200m Water Well Drilling Machine

Track Type ZGSJ-200 200m Water Well Drilling Machine



Track type multipurpose water well drill rig, all new designed, high efficiency and multipurpose hydraulic drill rig, mainlyfor drilling water wells, inspection wells and geothermal air vent wells, ect.


High premium configuration widely used in various well drilling applications. Combined with best features fromdomestic and international products and key hydraulic components, all global famous brands to ensure reliability,and the leading and top class water well drill rig in China.


Hoist and winch capable to lift drill tools and accessories up to 1,500 Kg,reducing workload of operators.


Tramming motor with larger torque for free and fast moving between different work condition sites.


Feeding and lifting with fast and low speed for higher drilling efficiency, high torque rotation unit with two speedadjustable for different hole ranges and rock conditions.



1. Small in size, it can easily enter the rural residential yard through the gate.



2. The design is simple and reliable on the premise of ensuring sufficient rotary torque and lifting force, and can be widely applied to the civil market.



3. The hoisting winding machine can flexibly hoist the drill or auxiliary tools within 1.5 tons, which can greatly reduce the labor intensity of the operator.



4. The rotating speed has two gears and the rotating speed can be adjusted, which is suitable for different pore sizes and geological conditions.



Product Advantages



1. Convenient and flexible positioning, mechanism and plate turnover structure, simple and high efficiency.



2. Centralized operation and control system, easy, convenient and high efficiency.



3. High torque rotation unit with high and low speed switchable and torque up to 5,600 N.m, widely used in large hole DTH drilling and casing.



Main Technical Parameters



Track Type ZGSJ-200 200m Water Well Drilling Machine 0

Track Type ZGSJ-200 200m Water Well Drilling Machine 1
