ZGSJ-200 Water Well Drilling Machine

ZGSJ-200 Water Well Drilling Machine

ZGSJ-200 Water Well Drilling Machine

Brand Name:	OEM
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T, L/C, T/T, Western Union
Supply Ability:	Based on the detailed quotation

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,CE

Type:

Rotary Drilling Rig

Power Type:

Diesel

Usage:

Water Well

After-sales Service Provided:

Overseas Third-party Support Available

Hole Range:

110-200 Mm

Hole Depth Max:

180M

Voltage:

220/380V

Working Pressure:

1.5-2.7Mpa

Air Consumption:

16-30cubic Meter/min

Engine Model:

Yuchai YCD4R22T-80

Drill Pipe Length:

2/3M

Packaging Details:

Wooden cases standard export package

Supply Ability:

Based on the detailed quotation

Highlight:

Lightweight Water Well Drilling Machine

,

One Man Water Well Drilling Rigs

Product Description

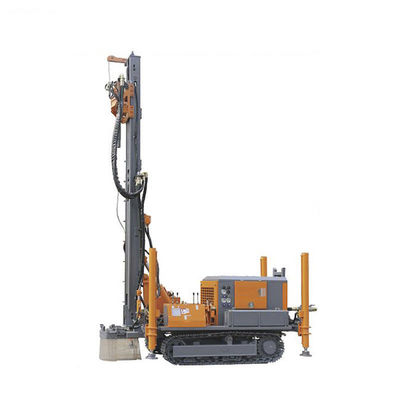

ZGSJ-200 Water Well Drilling Machine

Features

ZGSJ-200 Water well drilling machine is a lightweight, efficient, multi-function device of surface drill rig.

The rig could drill in the different stratum, drilling up to 202mm in diameter.

Independent module design, allows drilling rig could be loaded on a truck to increase its mobility.

The two steps of rotating and pushing speed to meet the soil and rock different, combination need.

Product Specification

Model	ZGSJ-200	ZGSJ-450
Drilling hole diameter	110-200mm	138-254mm
Drilling depth	180m	300m
Traveling speed	2.5km/h	2.5km/h
Rotation speed	40-80r/min	0-70r/min
Rotation torque	2800-5600 N.m	7500 N.m
Max feed force	25kN	50kN
Climbing ability	25°	25°
Ground clearance	280mm	300mm
Weight	5.7T	8.5T
Dimension	540019002500mm	650020002900mm
Engine model	Yuchai YCD4R22T-80	Yuchai YC4DK-125
Power	59KW	92KW

Product Package

ZGSJ-200 Water Well Drilling Machine 0
